Earth Systems Modelling Results

Bristol Research Initiative for the Dynamic Global Environment

Model Simulations

Experiment: xptdq

UM designed bottom friction-spinup01. Present Day Orbit. Add two bathymetric ridges linking North pole and Eurasia, North America (if has) separately, with bathymetric: central -3500m, layer 18, surrounding -4500m, layer 19.

Set the Eurasia_Africa_India landmass to be reference landmass, others to be islands/comparision landmasses. New simplified and moved Eurasia_Africa_India landmass and Tibet if compare to Idealized_NoRidge series.

Brief Description Fuller Description Total Length of Run (in years) Averaging period (in years) Spinup period (in years) CO2 (in ppmv) CH4 (in ppbv) N2O (in ppbv) CFC11 (in pptv) CFC12 (in pptv) Computer used for simulation Compiler used for simulation Date of first entry in datebase Date of most recent modification to entry in database
ALL_NoNA_NoTibet Landmasses represent Eurasia_Africa_India, Australia, Antarctica,and South America, no Tibet. 4500 100 4400 280 760 270 0 0 bc4 Intel_v17_0.1_bc4 2024_03_31_17_55 2024_11_11_19_43
You can access the means from this run, by going here
You can access the ocean integrals from this run, by going here
And noise diagnostics here


This page shows a small subset of images from this simulation. They have already been produced and there are no optional choices. If you want to do a more detailed examination of the model results, you can go to the main page and select one of the Parts. This will give you full access the system



Summary of Results for Experiment xptdq

Atlantic Meridional Overturning StrengthDepth of Max Atlantic OverturningLatitude of Max Atlantic Overturning

Variable

DJFJJAANNMonthlyVariable

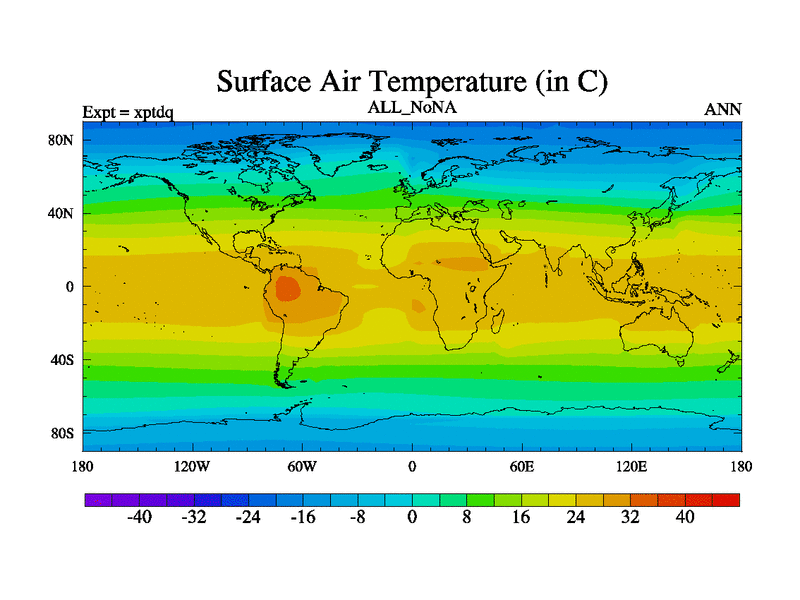

Surface Air TemperatureSurface Air Temperature Time Series
Total PrecipitationSurface Air Temperature Time Series (annual means)
EvaporationSoil Moisture in Layer 4 (Deepest layer) (annual means)
Precipitation - EvaporationGregory Plot (10 year running mean)
Fractional Plant Stress (layer 1)BIOME4
Mean Sea Level PressureBIOME4 with CO2 changed
Total Cloud Cover
Plantary AlbedoWarm Month Mean

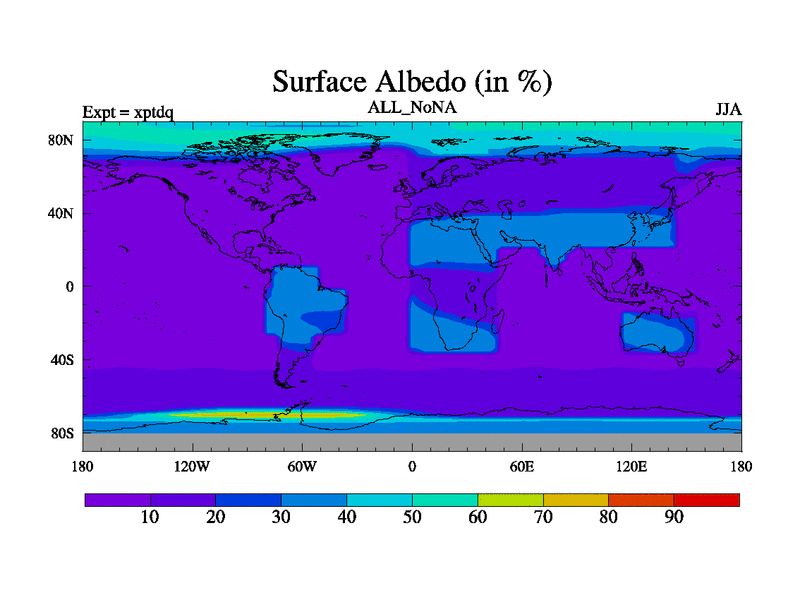

Surface AlbedoCold Month Mean

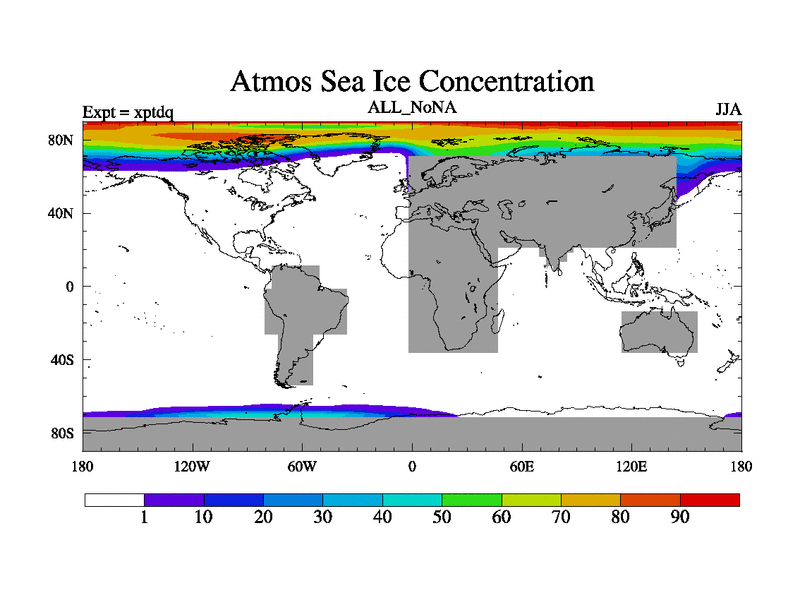

Sea Ice ConcentrationMean Annual Temperature Cycle
Stream Function at 200 hPaMean Annual Precipitation Cycle
Velocity Potential at 200 hPaVegetation Fractions
Divergence (Smoothed) at 200 hPaSoil Carbon Time Series
Perturbation Height at 500 hPaVegetation-Climate
Meridional Stream Function
High Pass Eddy Kinetic Energy at 200 hPa
Low Pass Eddy Kinetic Energy at 200 hPa
High Pass Temperature Flux at 850 hPa
Ocean Potential Temperature at 5mOcean Potential Temperature at 2116m
Ocean Salinity at 5mOcean Salinity at 2116m
Ocean Currents at 5mOcean Currents at 2116m
Ocean Horizontal StreamfunctionAtmos/Ocean Heat Transport
Ocean Vertical Velocity at 10mOcean Vertical Velocity at 2424m
Ocean Mixed Layer DepthMass Streamfunction
