Model Simulations

Experiment: xnzqa

A long description of this run is currently not available

Brief Description Fuller Description Total Length of Run (in years) Averaging period (in years) Spinup period (in years) CO2 (in ppmv) CH4 (in ppbv) N2O (in ppbv) CFC11 (in pptv) CFC12 (in pptv) Computer used for simulation Compiler used for simulation Date of first entry in datebase Date of most recent modification to entry in database
Chattin_2xCO2_CopyXnxea_Getech As xnxea but with Chattian Getech orography 100 30 70 560 760 270 0 0 newblue Intel_v13.0.1_newblue 2018_04_28_07_09 2018_10_25_12_30
You can access the means from this run, by going here


This page shows a small subset of images from this simulation. They have already been produced and there are no optional choices. If you want to do a more detailed examination of the model results, you can go to the main page and select one of the Parts. This will give you full access the system



Summary of Results for Experiment xnzqa

Variable

DJFJJAANNMonthlyVariable

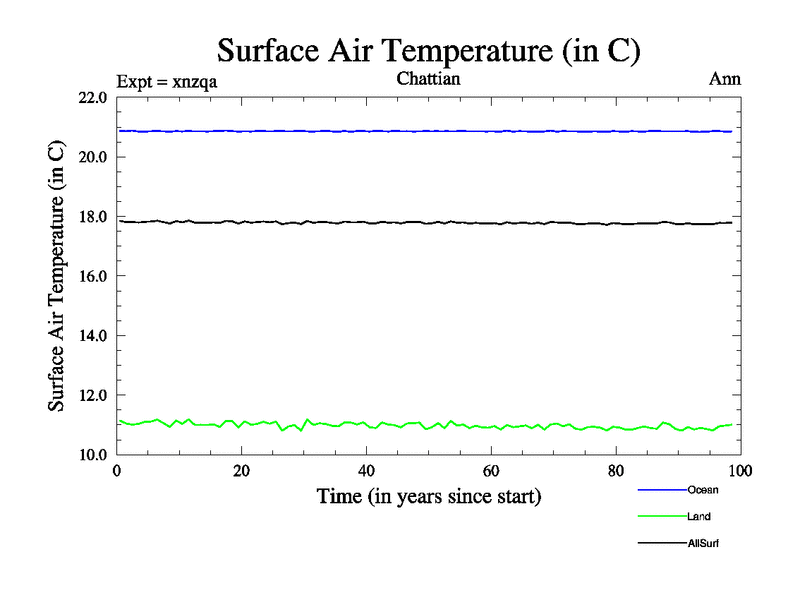

Surface Air TemperatureSurface Air Temperature Time Series
Total PrecipitationSurface Air Temperature Time Series (annual means)

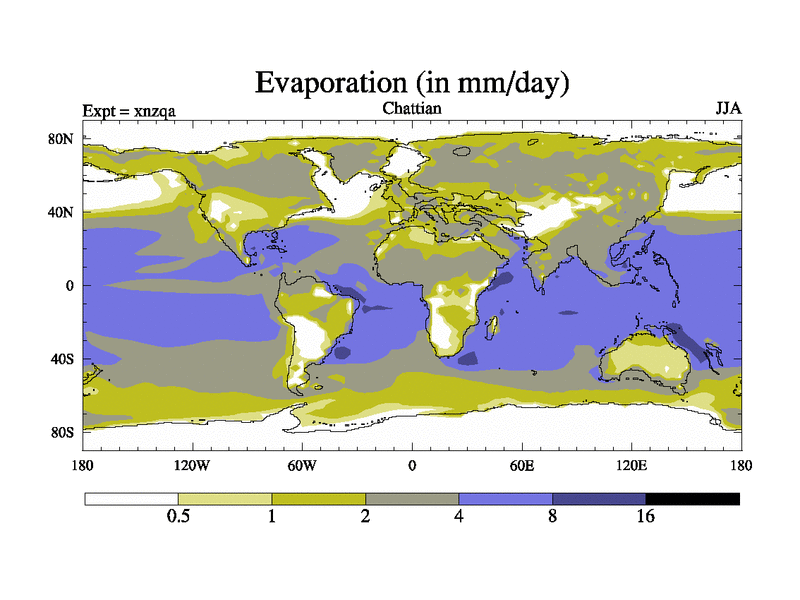

EvaporationSoil Moisture in Layer 4 (Deepest layer)
Precipitation - EvaporationSoil Moisture in Layer 4 (Deepest layer) (annual means)
Fractional Plant Stress (layer 1)BIOME4
Mean Sea Level PressureBIOME4 with CO2 changed
Total Cloud Cover
Plantary AlbedoWarm Month Mean
Surface AlbedoCold Month Mean
Sea Ice Concentration
Stream Function at 200 hPa
Velocity Potential at 200 hPaVegetation Fractions
Divergence (Smoothed) at 200 hPaSoil Carbon Time Series
Perturbation Height at 500 hPa
Meridional Stream Function

Summary of Results for Experiment xnzqa-xnxea

Variable

DJFJJAANNMonthlyVariable
Surface Air TemperatureSurface Air Temperature Time Series
Total PrecipitationSurface Air Temperature Time Series (annual means)
EvaporationSoil Moisture in Layer 4 (Deepest layer)
Precipitation - EvaporationSoil Moisture in Layer 4 (Deepest layer) (annual means)
Fractional Plant Stress (layer 1)BIOME4
Mean Sea Level PressureBIOME4 with CO2 changed
Total Cloud Cover
Plantary AlbedoWarm Month Mean
Surface AlbedoCold Month Mean
Sea Ice Concentration

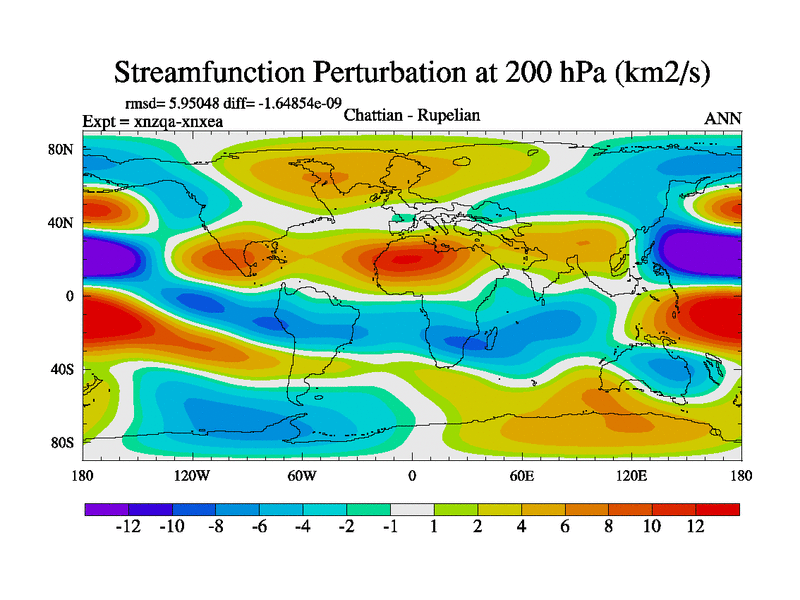

Stream Function at 200 hPa

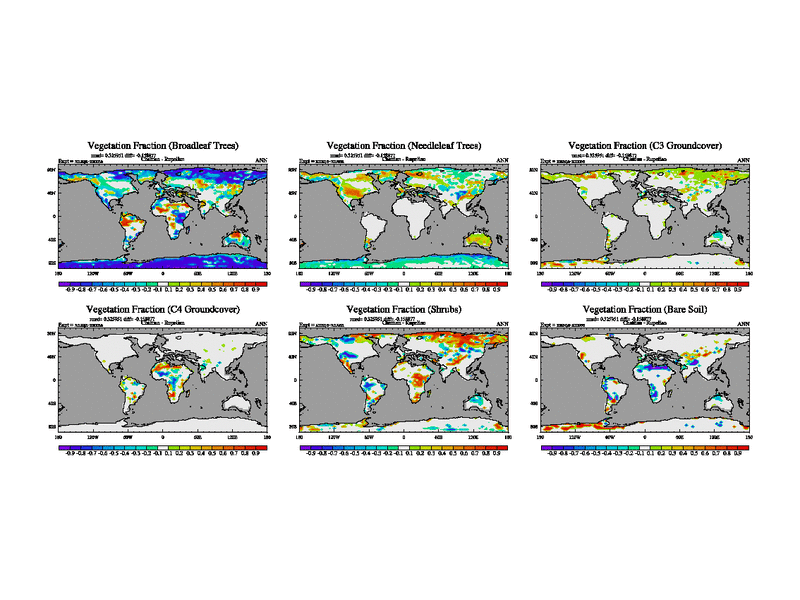

Velocity Potential at 200 hPaVegetation Fractions

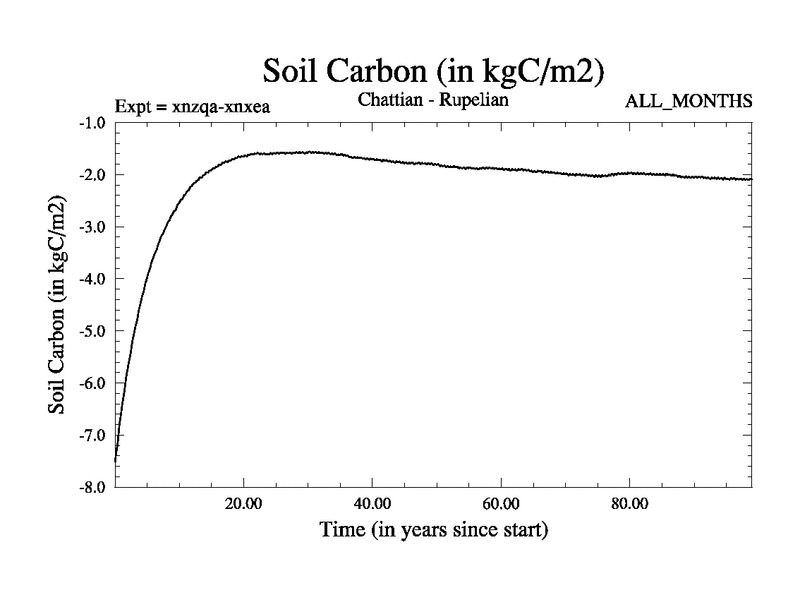

Divergence (Smoothed) at 200 hPaSoil Carbon Time Series
Perturbation Height at 500 hPa

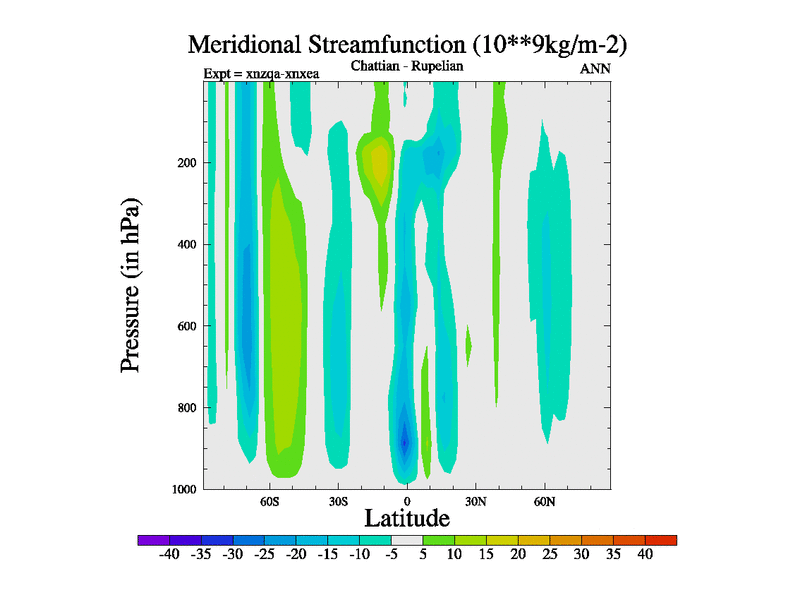

Meridional Stream Function
