Earth Systems Modelling Results

Bristol Research Initiative for the Dynamic Global Environment

with the

University of Reading, Open University, and the British Antarctic Survey.
Model Simulations

Experiment: xjlag

SST and sea-ice is tctqe HadCM3. Vegetation fractions are no longer prescribed from the HadGEM2 preindustrial 1860 map, regridded and expanded to the LGM land sea mask. Continuation of xgser. Code changes for TRIFFID model tuning exercise. The only effect this should have is on the values used for critical soil moisture value for plants which now has a very slightly modified spatial distribution compared to the original ancil file.

TLEAF_OF 273.15 223.15 258.15 258.15 263.15 DGL_DT 9.0 9.0 0.0 0.0 9.0
Brief Description Fuller Description Total Length of Run (in years) Averaging period (in years) Spinup period (in years) CO2 (in ppmv) CH4 (in ppbv) N2O (in ppbv) CFC11 (in pptv) CFC12 (in pptv) Computer used for simulation Compiler used for simulation Date of first entry in datebase Date of most recent modification to entry in database
HadGAM2 LGM atmosphere-only HadGEM2-A. Dynamic TRIFFID 30 year simulation. Following on from dynamic TRIF simulation xjlae. Run on ARCHER. Dust parameters are here set to the ES model values. Leaf parameters set 9. 30 30 0 185 350 200 0 0 unknown unknown 2014_03_17_12_45 2014_04_24_22_07
You can access the means from this run, by going here

This page shows a small subset of images from this simulation. They have already been produced and there are no optional choices. If you want to do a more detailed examination of the model results, you can go to the main page and select one of the Parts. This will give you full access the system

Summary of Results for Experiment xjlag

Variable

DJFJJAANNMonthlyVariable
Surface Air Temperature
Total Precipitation
Fractional Plant Stress (layer 1)BIOME4

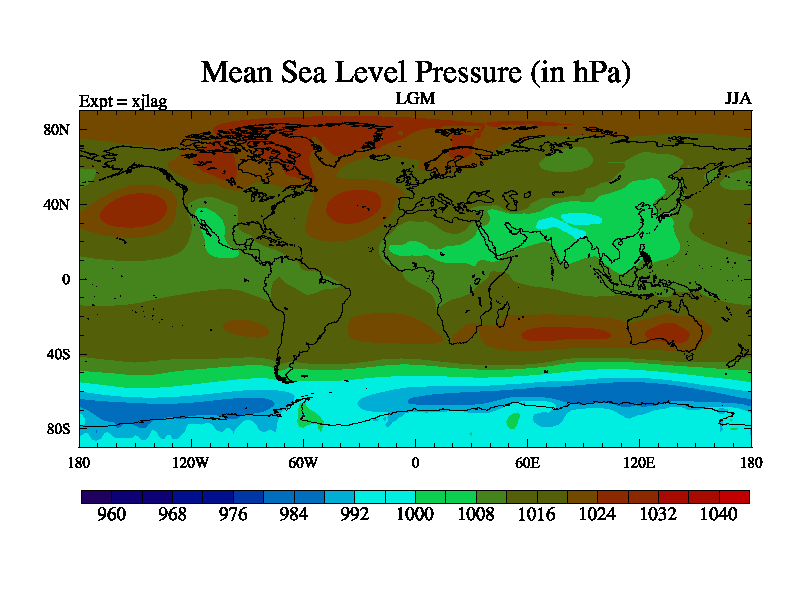

Mean Sea Level PressureBIOME4 with CO2 changed
Total Cloud Cover
Plantary AlbedoWarm Month Mean

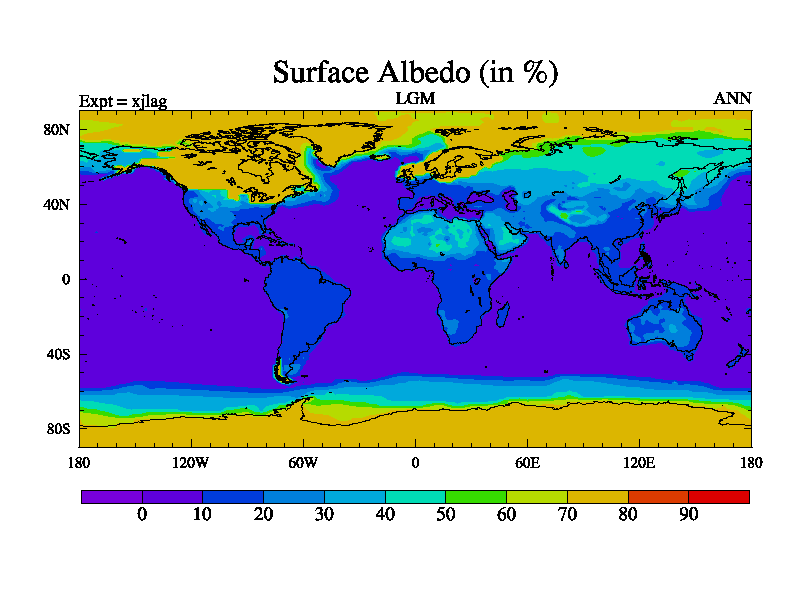

Surface AlbedoCold Month Mean
Perturbation Height at 500 hPa

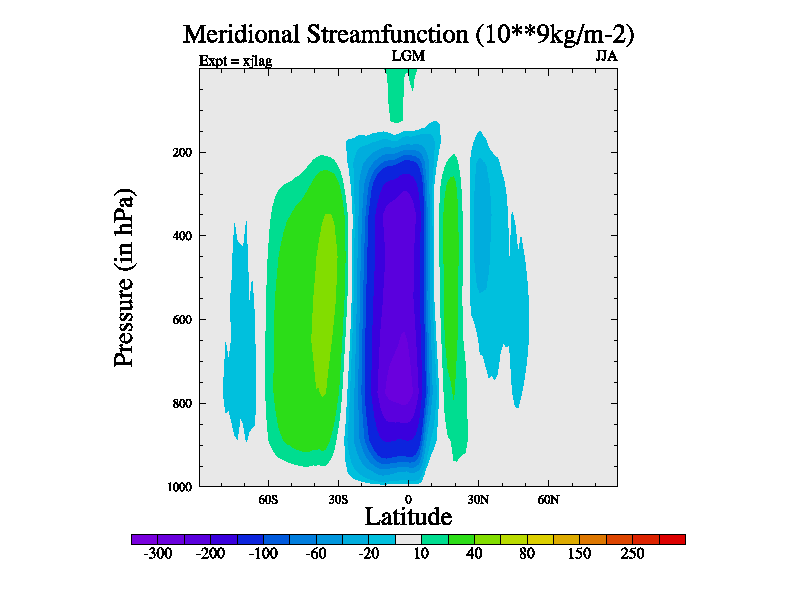

Meridional Stream Function

Summary of Results for Experiment xjlag-xjlae

Variable

DJFJJAANNMonthlyVariable
Surface Air Temperature
Total Precipitation
Fractional Plant Stress (layer 1)
Mean Sea Level Pressure
Total Cloud Cover
Perturbation Height at 500 hPa

Last updated Tue Mar 10 17:33:02 GMT 2015 This page is maintained by P.J.Valdes@bristol.ac.uk
