Earth Systems Modelling Results

Bristol Research Initiative for the Dynamic Global Environment

with the

University of Reading, Open University, and the British Antarctic Survey.

Model Simulations

Experiment: tfcce

Brief Description Fuller Description Total Length of Run (in years) Averaging period (in years) Spinup period (in years) CO2 (in ppmv) CH4 (in ppbv) N2O (in ppbv) CFC11 (in pptv) CFC12 (in pptv) Computer used for simulation Compiler used for simulation Date of first entry in datebase Date of most recent modification to entry in database
MM280_55m_WO This is a Middle Miocene simulation with CO2 set to 280ppm. It has the control ice from mio2gdra. It uses MOSES2.1 with triffid equilibrium. It continues on from tfbze. Soil albedo is set to 0.31. It has warm orbital parameters 400 50 350 280 760 270 0 0 newblue unknown 2019_06_07_08_32 2019_06_07_08_32
You can access the means from this run, by going here
You can access the ocean integrals from this run, by going here


This page shows a small subset of images from this simulation. They have already been produced and there are no optional choices. If you want to do a more detailed examination of the model results, you can go to the main page and select one of the Parts. This will give you full access the system



Summary of Results for Experiment tfcce

Atlantic Meridional Overturning StrengthDepth of Max Atlantic OverturningLatitude of Max Atlantic Overturning

Variable

DJFJJAANNMonthlyVariable
Surface Air Temperature

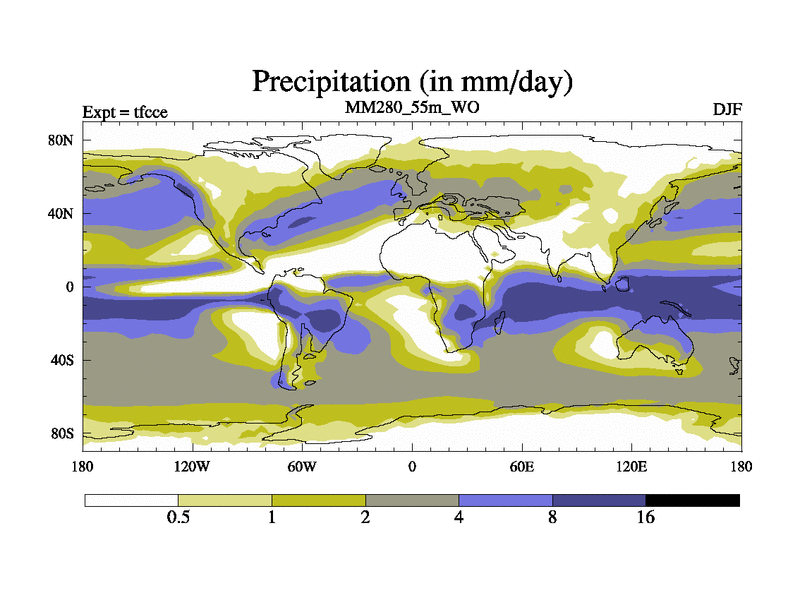

Total Precipitation

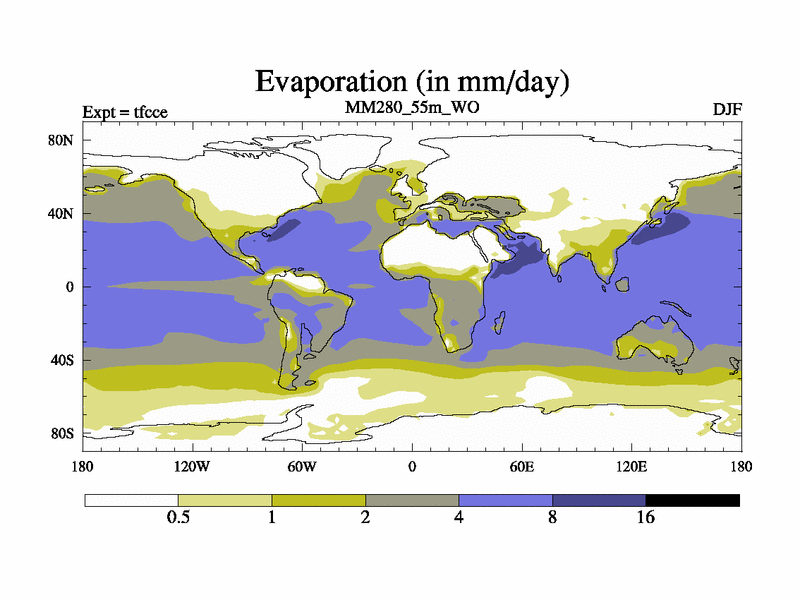

Evaporation

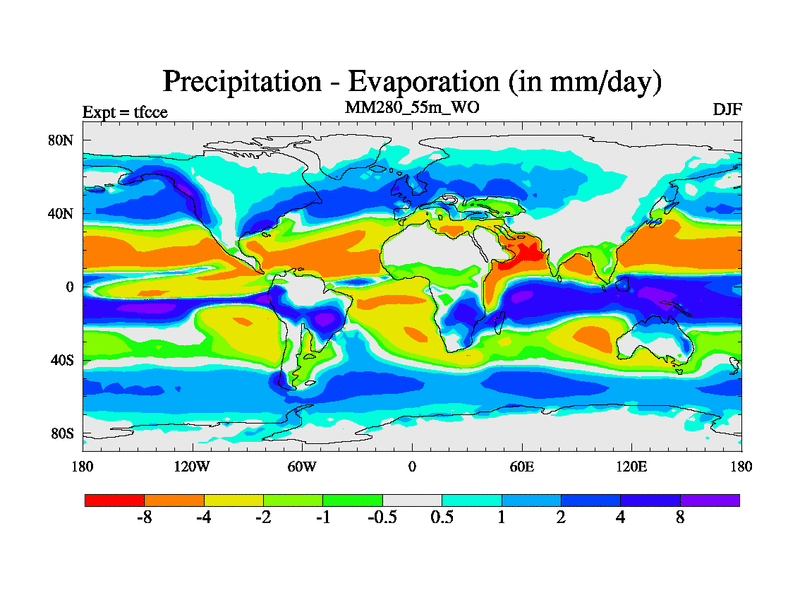

Precipitation - Evaporation
Fractional Plant Stress (layer 1)BIOME4
Mean Sea Level PressureBIOME4 with CO2 changed

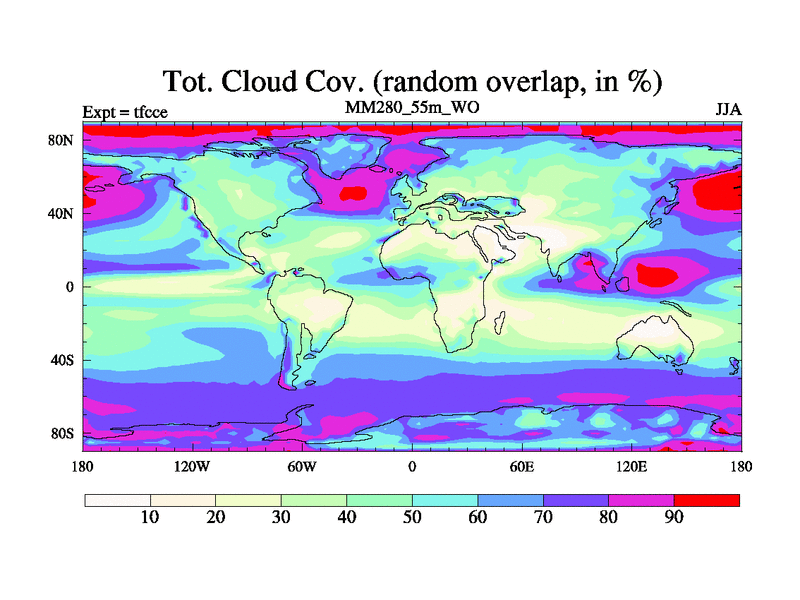

Total Cloud Cover
Plantary AlbedoWarm Month Mean
Surface AlbedoCold Month Mean
Sea Ice Concentration
Stream Function at 200 hPa
Velocity Potential at 200 hPaVegetation Fractions
Divergence (Smoothed) at 200 hPaSoil Carbon Time Series

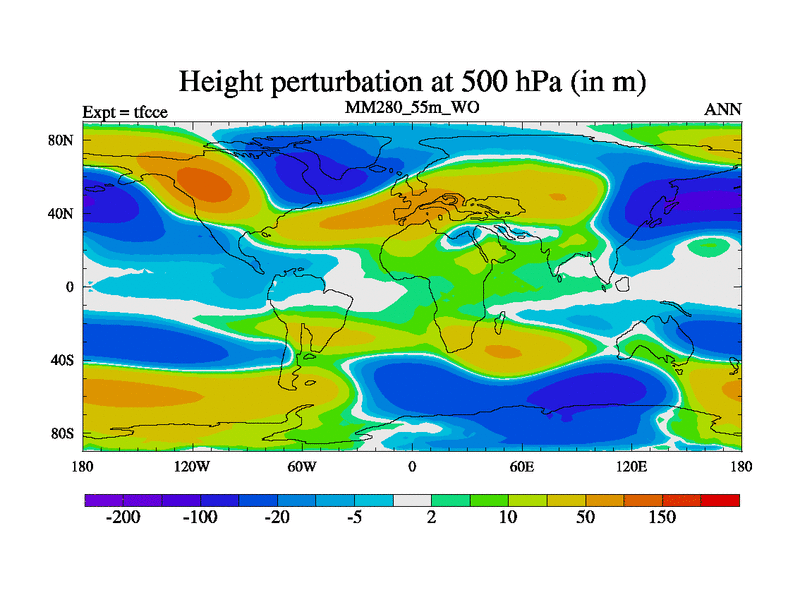

Perturbation Height at 500 hPa
Meridional Stream Function
Ocean Potential Temperature at 5mOcean Potential Temperature at 2116m
Ocean Salinity at 5mOcean Salinity at 2116m
Ocean Currents at 5mOcean Currents at 2116m
Ocean Vertical Velocity at 10mOcean Vertical Velicity at 2424m
Ocean Mixed Layer DepthMass Streamfunction



Last updated Fri Jun 21 23:46:16 BST 2019 This page is maintained by P.J.Valdes@bristol.ac.uk
