Earth Systems Modelling Results

Bristol Research Initiative for the Dynamic Global Environment

Model Simulations

Experiment: tevzd1

Using TRIFFID: dynamic mode, started from teix set of simulations (previous bbc_long runs). This version includes the dark_respiration update.

This job is a copy of tdaaf which is stored in swsvalde and represents a BRIDGE latest standard HadCM3-MOSES2.1 job.

And noise diagnostics here

Brief Description	Fuller Description	Total Length of Run (in years)	Averaging period (in years)	Spinup period (in years)	CO2 (in ppmv)	CH4 (in ppbv)	N2O (in ppbv)	CFC11 (in pptv)	CFC12 (in pptv)	Computer used for simulation	Compiler used for simulation	Date of first entry in datebase	Date of most recent modification to entry in database
0176kyr_BP with preind ice cover	This is the 0176kyr simulation based on tevTa1 but preind ice sheet coverage	100	30	70	209.782	497.609	238.400	0	0	bc4	Intel_v17	2018_12_20_11_47	2018_12_20_11_47
You can access the means from this run, by going here

This page shows a small subset of images from this simulation. They have already been produced and there are no optional choices. If you want to do a more detailed examination of the model results, you can go to the main page and select one of the Parts. This will give you full access the system

Variable	DJF	JJA	ANN	Monthly	Variable
Surface Air Temperature					Surface Air Temperature Time Series
Total Precipitation					Surface Air Temperature Time Series (annual means)
Evaporation					Soil Moisture in Layer 4 (Deepest layer) (annual means)
Precipitation - Evaporation					Gregory Plot (10 year running mean)
Fractional Plant Stress (layer 1)					BIOME4
Mean Sea Level Pressure					BIOME4 with CO2 changed
Total Cloud Cover					BIOME4 with CO2 changed and anomaly of climate
Plantary Albedo					Warm Month Mean

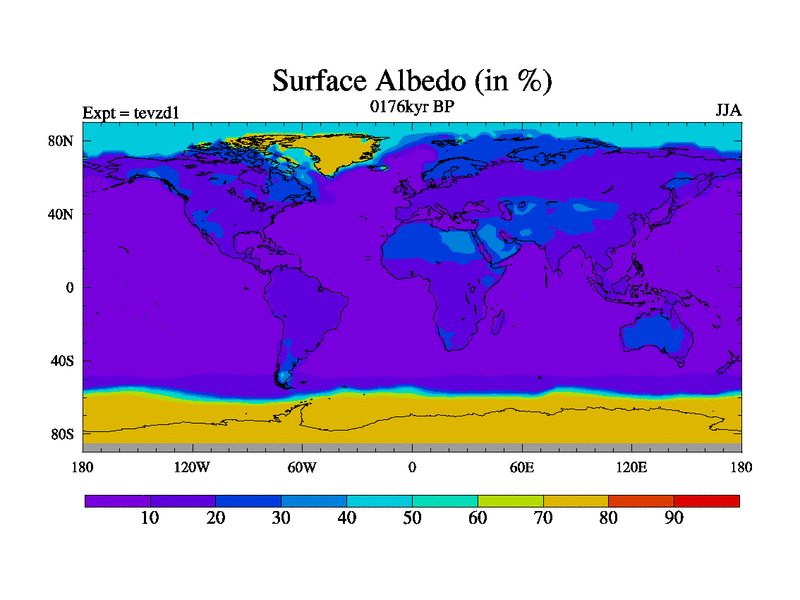

Surface Albedo					Cold Month Mean
Sea Ice Concentration					Mean Annual Temperature Cycle
Stream Function at 200 hPa					Mean Annual Precipitation Cycle
Velocity Potential at 200 hPa					Vegetation Fractions

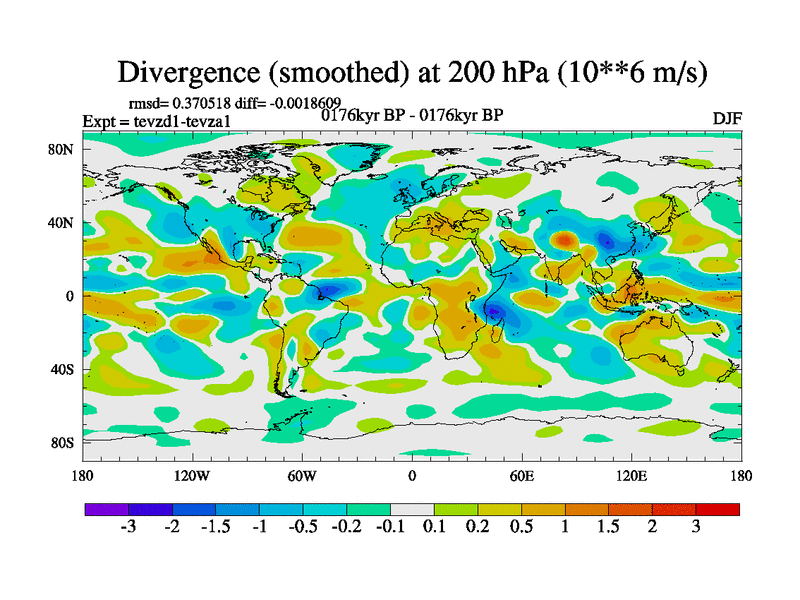

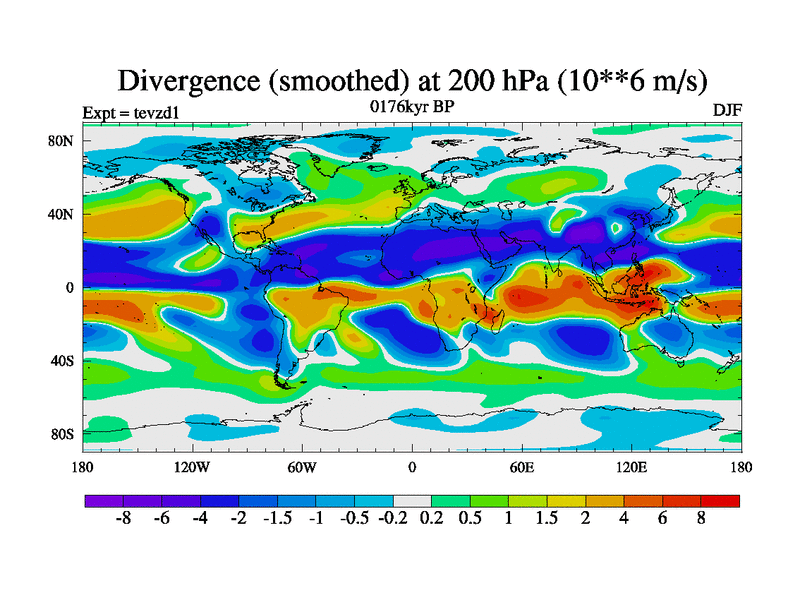

Divergence (Smoothed) at 200 hPa					Soil Carbon Time Series
Perturbation Height at 500 hPa					Vegetation-Climate
Meridional Stream Function

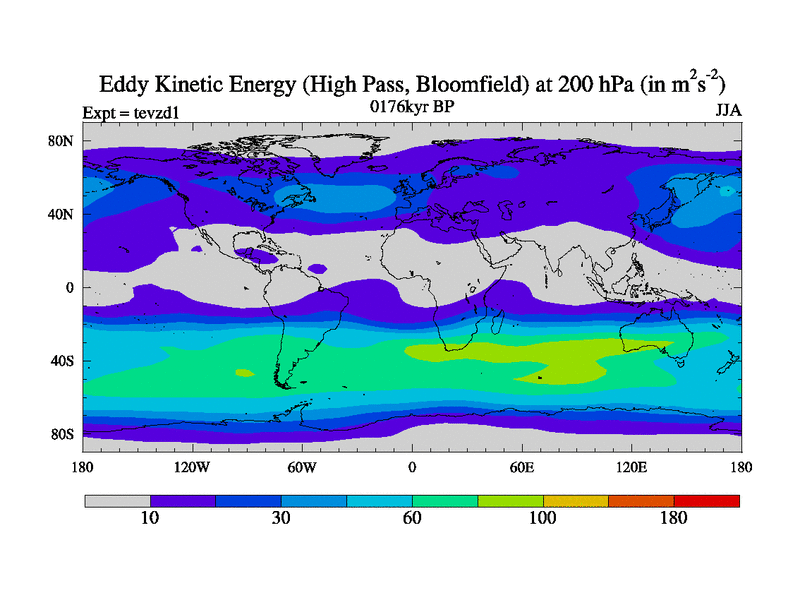

High Pass Eddy Kinetic Energy at 200 hPa
Low Pass Eddy Kinetic Energy at 200 hPa
High Pass Temperature Flux at 850 hPa

Variable	DJF	JJA	ANN	Monthly	Variable
Surface Air Temperature					Surface Air Temperature Time Series
Total Precipitation					Surface Air Temperature Time Series (annual means)
Evaporation					Soil Moisture in Layer 4 (Deepest layer) (annual means)
Precipitation - Evaporation
Fractional Plant Stress (layer 1)					BIOME4
Mean Sea Level Pressure					BIOME4 with CO2 changed
Total Cloud Cover					BIOME4 with CO2 changed and anomaly of climate
Plantary Albedo					Warm Month Mean
Surface Albedo					Cold Month Mean
Sea Ice Concentration
Stream Function at 200 hPa
Velocity Potential at 200 hPa					Vegetation Fractions
Divergence (Smoothed) at 200 hPa					Soil Carbon Time Series
Perturbation Height at 500 hPa					Vegetation-Climate
Meridional Stream Function
