Model Simulations

Experiment: tcyxc

A long description of this run is currently not available

Brief Description Fuller Description Total Length of Run (in years) Averaging period (in years) Spinup period (in years) CO2 (in ppmv) CH4 (in ppbv) N2O (in ppbv) CFC11 (in pptv) CFC12 (in pptv) Computer used for simulation Compiler used for simulation Date of first entry in datebase Date of most recent modification to entry in database
HadCM3M2.2_Benchmark This job is stored in swsvalde and represents a BRIDGE standard HadCM3-MOSES2.2 job. It was run on bigblue on Aug 2010 and used 8 processors (4 NS/2 EW). The latter should not matter but has rarely been tested. We do not have a benchmark to compare this to but there is ambiguity as to whether fix_rad update should be included. This run does not include fix_rad and should be compared to tcyxb and the MOSES2.1 run tcywb. 600 30 570 280 760 270 0 0 bigblue Intel_v10.1 2010_09_07_21_39 2010_09_07_21_39
You can access the means from this run, by going here
You can access the ocean integrals from this run, by going here


This page shows a small subset of images from this simulation. They have already been produced and there are no optional choices. If you want to do a more detailed examination of the model results, you can go to the main page and select one of the Parts. This will give you full access the system



Summary of Results for Experiment tcyxc

Atlantic Meridional Overturning StrengthDepth of Max Atlantic OverturningLatitude of Max Atlantic Overturning

Variable

DJFJJAANNMonthlyVariable
Surface Air TemperatureSurface Air Temperature Time Series
Total PrecipitationSurface Air Temperature Time Series (annual means)
Evaporation
Precipitation - EvaporationGregory Plot (10 year running mean)
Fractional Plant Stress (layer 1)BIOME4
Mean Sea Level PressureBIOME4 with CO2 changed
Total Cloud Cover
Plantary AlbedoWarm Month Mean
Surface AlbedoCold Month Mean

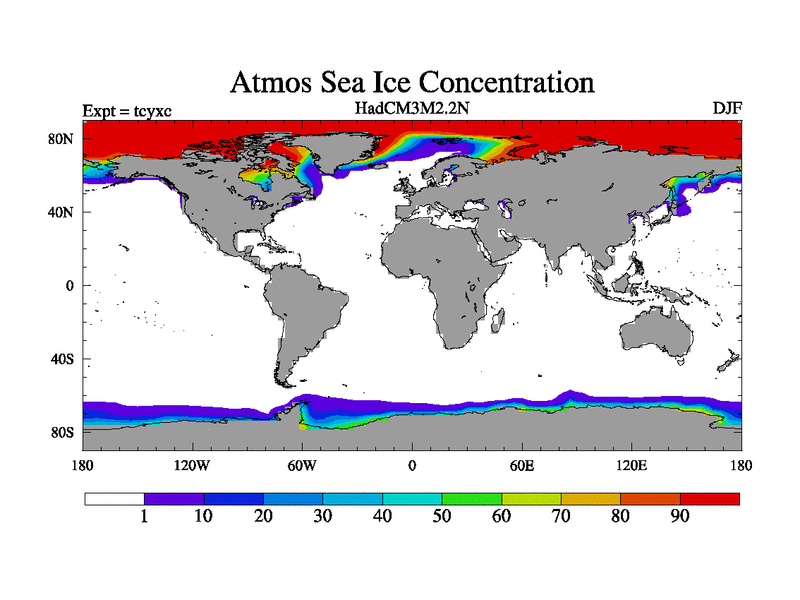

Sea Ice Concentration
Stream Function at 200 hPa
Velocity Potential at 200 hPa
Divergence (Smoothed) at 200 hPa
Perturbation Height at 500 hPa
Meridional Stream Function
Ocean Potential Temperature at 5mOcean Potential Temperature at 2116m
Ocean Salinity at 5mOcean Salinity at 2116m
Ocean Currents at 5mOcean Currents at 2116m
Ocean Vertical Velocity at 10mOcean Vertical Velicity at 2424m
Ocean Mixed Layer DepthMass Streamfunction

Summary of Results for Experiment tcyxc-tcmfa

Variable

DJFJJAANNMonthlyVariable

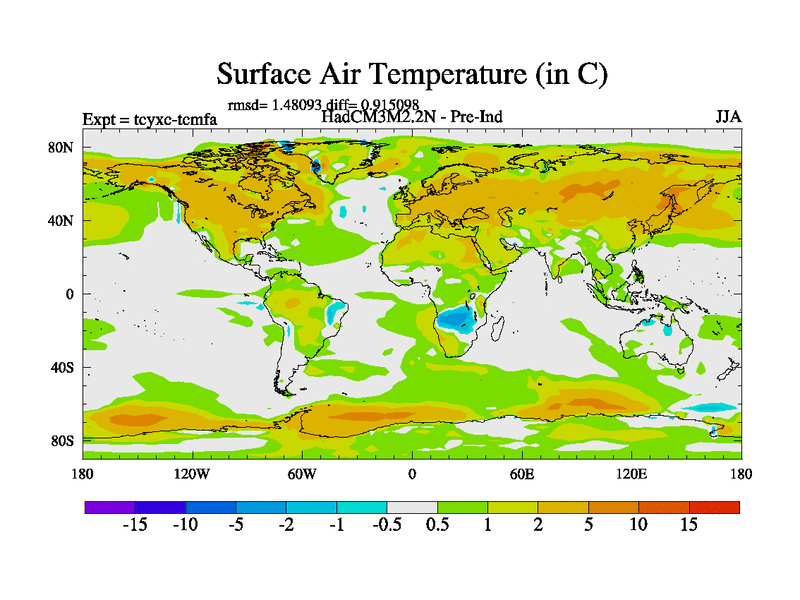

Surface Air Temperature
Total Precipitation
Evaporation
Precipitation - Evaporation
Fractional Plant Stress (layer 1)BIOME4
Mean Sea Level PressureBIOME4 with CO2 changed
Total Cloud Cover

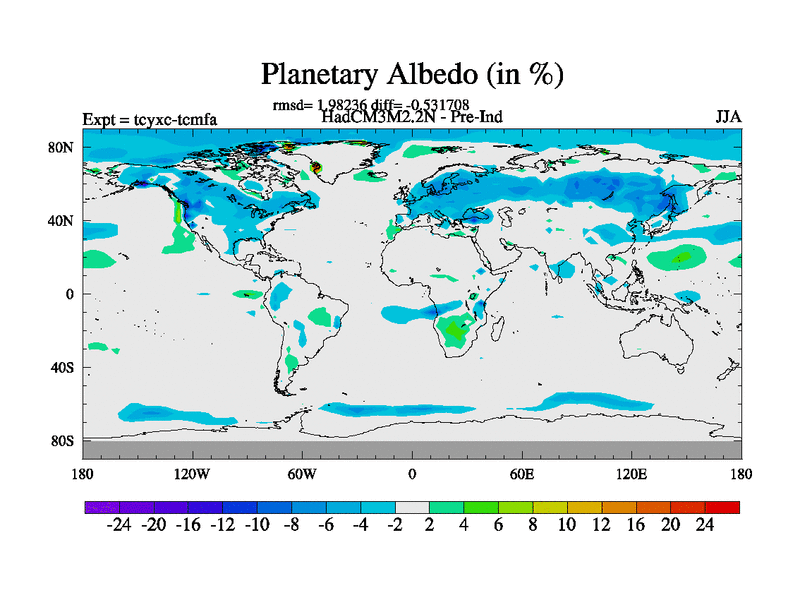

Plantary AlbedoWarm Month Mean
Surface AlbedoCold Month Mean

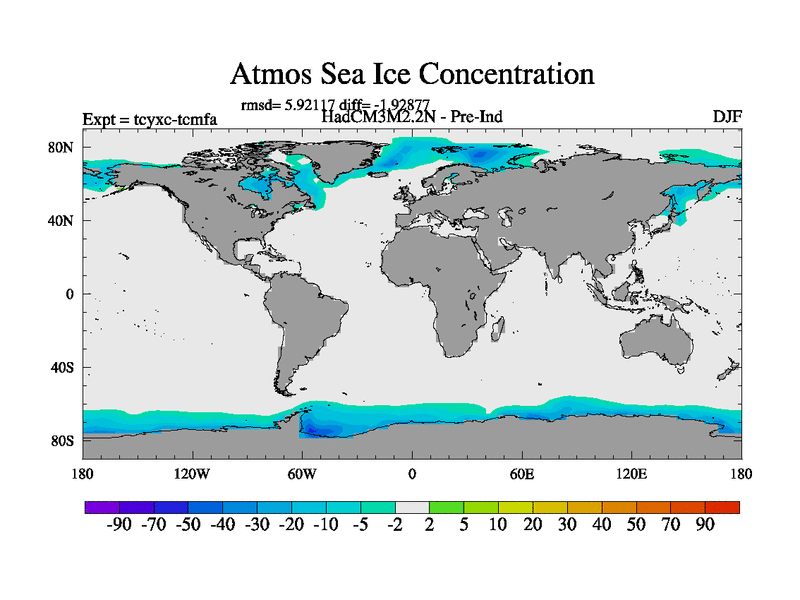

Sea Ice Concentration
Stream Function at 200 hPa
Velocity Potential at 200 hPa
Divergence (Smoothed) at 200 hPa
Perturbation Height at 500 hPa
Meridional Stream Function
Ocean Potential Temperature at 5mOcean Potential Temperature at 2116m
Ocean Salinity at 5mOcean Salinity at 2116m
Ocean Currents at 5mOcean Currents at 2116m
Ocean Vertical Velocity at 10mOcean Vertical Velicity at 2424m
Ocean Mixed Layer DepthMass Streamfunction

Summary of Results for Experiment tcyxc-tcywb

Atlantic Meridional Overturning StrengthDepth of Max Atlantic OverturningLatitude of Max Atlantic Overturning

Variable

DJFJJAANNMonthlyVariable
Surface Air TemperatureSurface Air Temperature Time Series
Total PrecipitationSurface Air Temperature Time Series (annual means)
Evaporation
Precipitation - Evaporation
Fractional Plant Stress (layer 1)BIOME4
Mean Sea Level PressureBIOME4 with CO2 changed
Total Cloud Cover
Plantary AlbedoWarm Month Mean
Surface AlbedoCold Month Mean
Sea Ice Concentration
Stream Function at 200 hPa

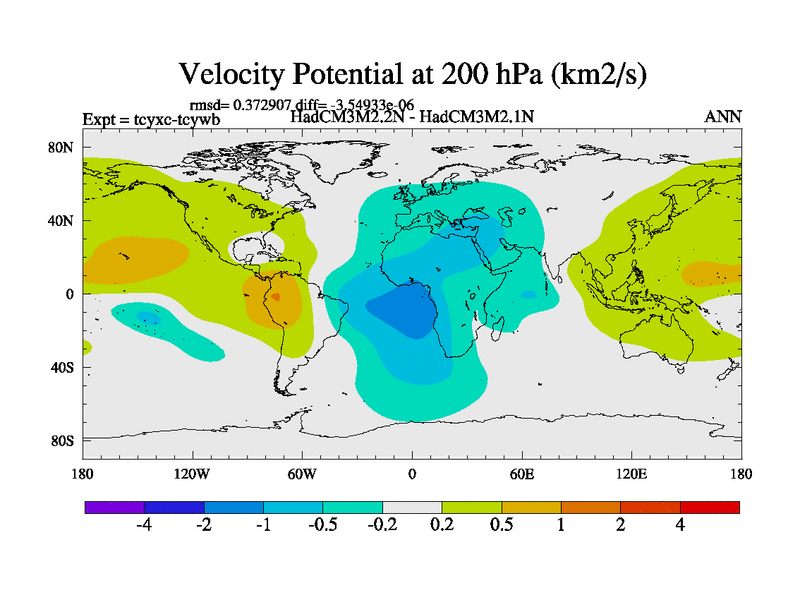

Velocity Potential at 200 hPa
Divergence (Smoothed) at 200 hPa
Perturbation Height at 500 hPa
Meridional Stream Function
Ocean Potential Temperature at 5mOcean Potential Temperature at 2116m
Ocean Salinity at 5mOcean Salinity at 2116m
Ocean Currents at 5mOcean Currents at 2116m
Ocean Vertical Velocity at 10mOcean Vertical Velicity at 2424m

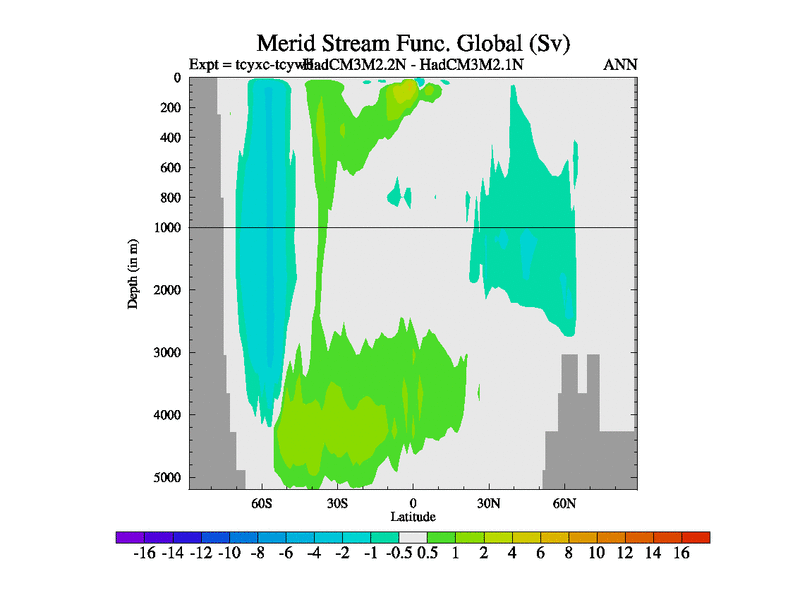

Ocean Mixed Layer DepthMass Streamfunction

Summary of Results for Experiment tcyxc-tcyxb

Atlantic Meridional Overturning StrengthDepth of Max Atlantic OverturningLatitude of Max Atlantic Overturning

Variable

DJFJJAANNMonthlyVariable

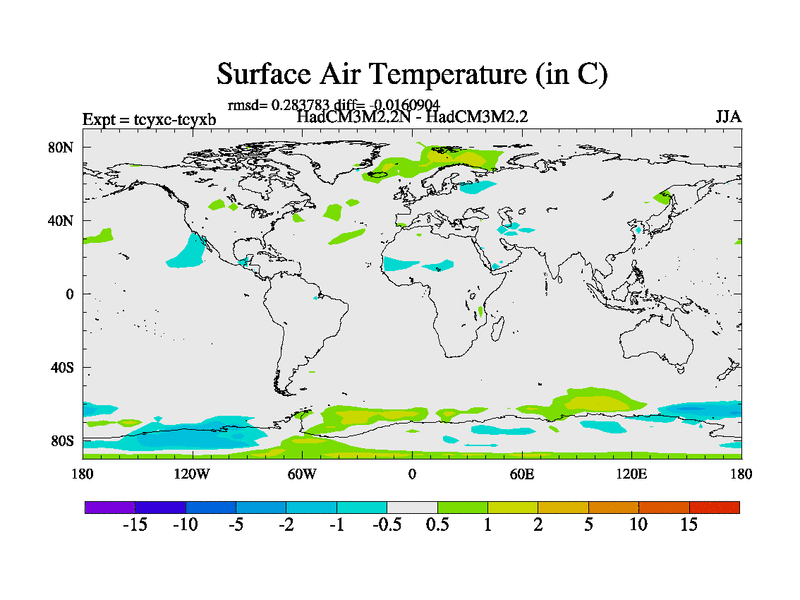

Surface Air TemperatureSurface Air Temperature Time Series
Total PrecipitationSurface Air Temperature Time Series (annual means)
Evaporation
Precipitation - Evaporation

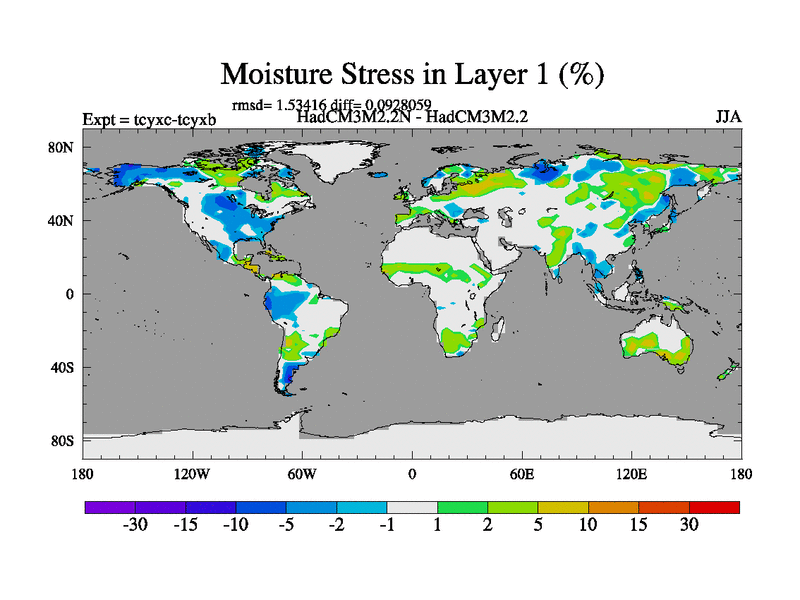

Fractional Plant Stress (layer 1)BIOME4

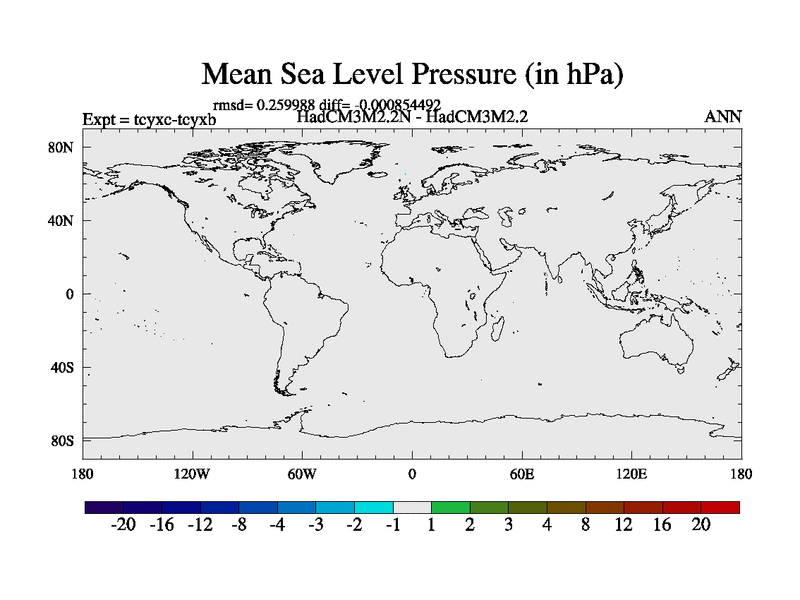

Mean Sea Level PressureBIOME4 with CO2 changed
Total Cloud Cover
Plantary AlbedoWarm Month Mean

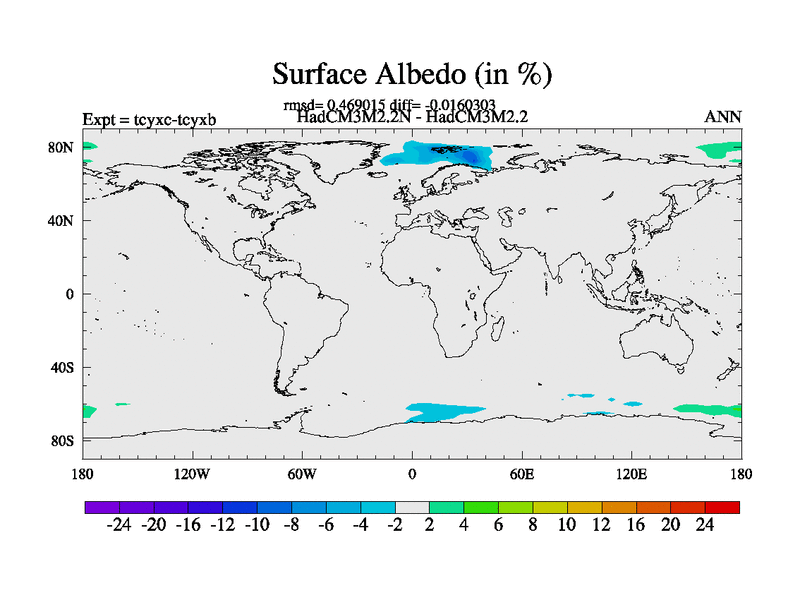

Surface AlbedoCold Month Mean

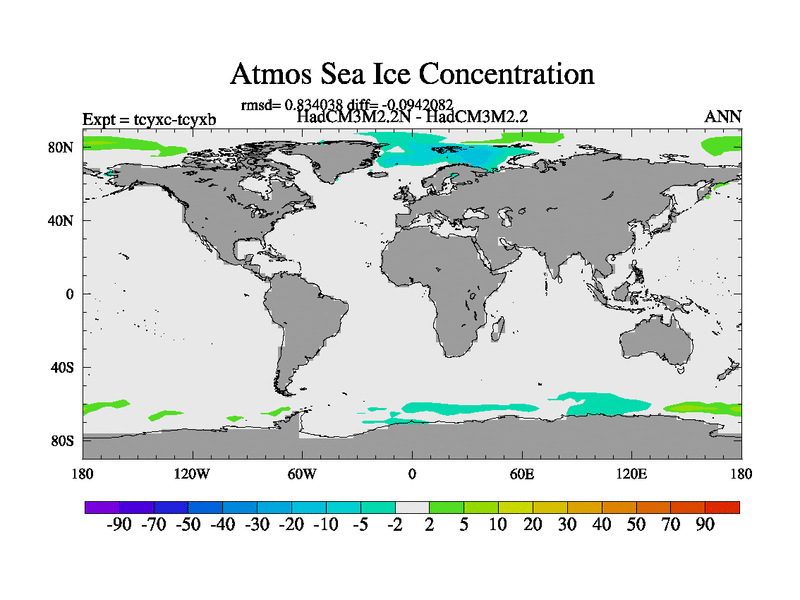

Sea Ice Concentration
Stream Function at 200 hPa

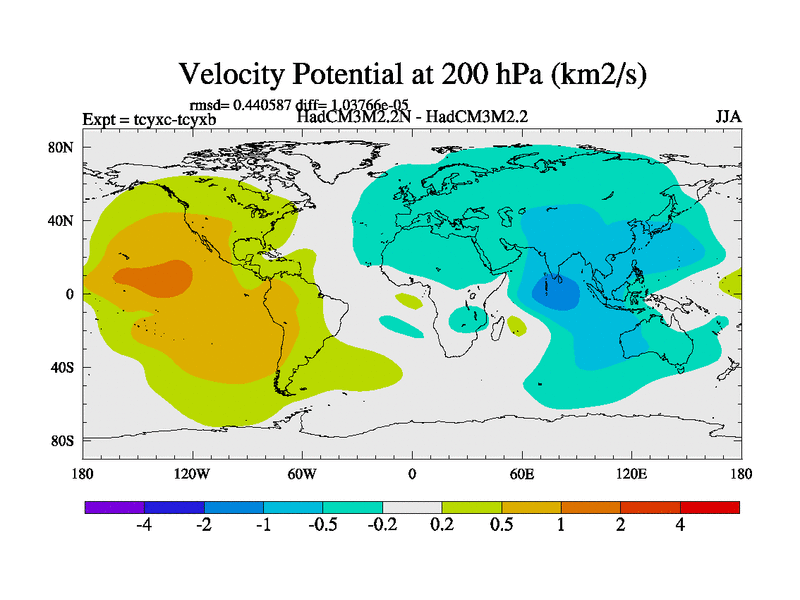

Velocity Potential at 200 hPa

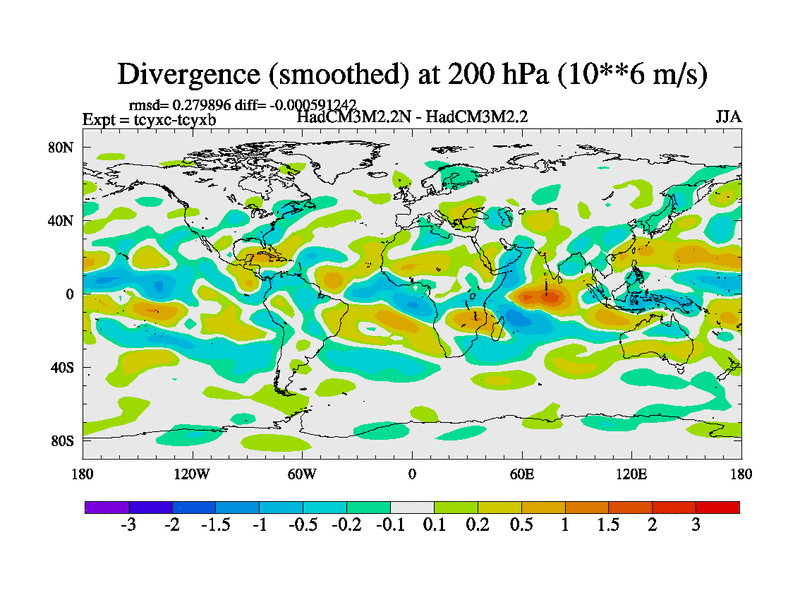

Divergence (Smoothed) at 200 hPa
Perturbation Height at 500 hPa

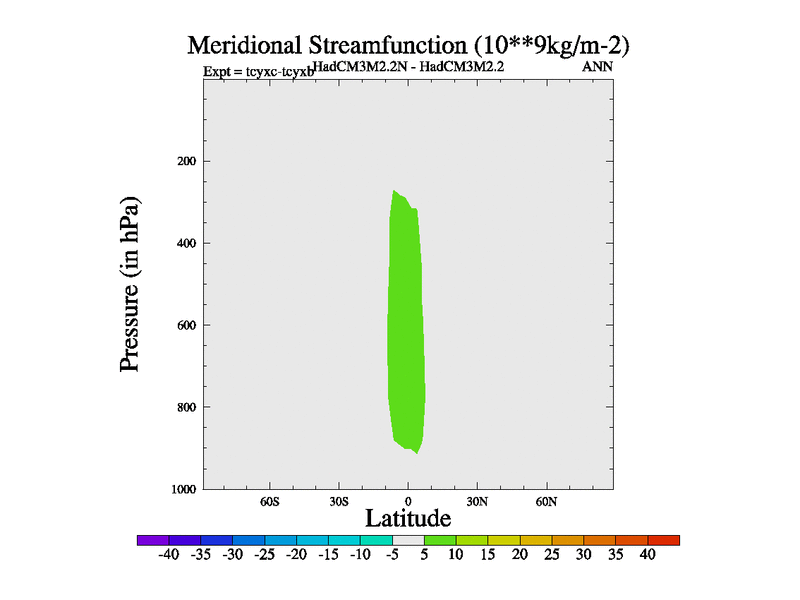

Meridional Stream Function
Ocean Potential Temperature at 5mOcean Potential Temperature at 2116m

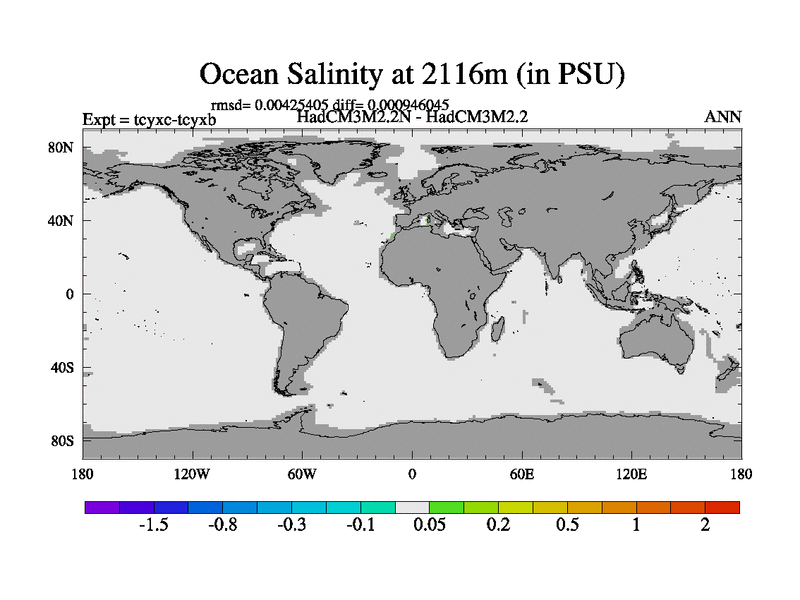

Ocean Salinity at 5mOcean Salinity at 2116m

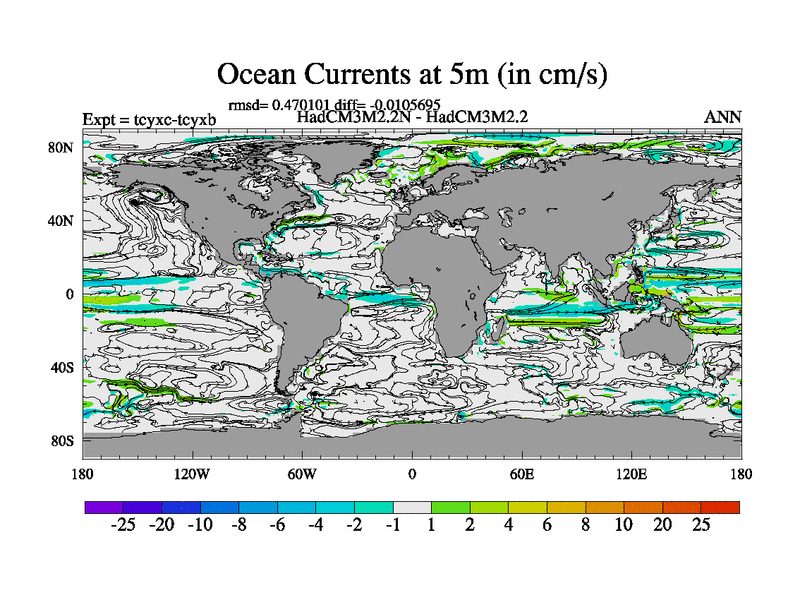

Ocean Currents at 5mOcean Currents at 2116m
Ocean Vertical Velocity at 10mOcean Vertical Velicity at 2424m
Ocean Mixed Layer DepthMass Streamfunction
