Earth Systems Modelling Results

Bristol Research Initiative for the Dynamic Global Environment

with the

University of Reading, Open University, and the British Antarctic Survey.
Model Simulations

Experiment: TCWEM

Parameters are perturbed as following, RHCRIT 0.6871, VF1 1.077, CT 0.0002445, CW_LAND 0.001801, CW_SEA 0.0004496, Z0FSEA 0.004007, KAY_GWAVE 1.873e%2B004, KAY_LEE_GWAVE 2.809e%2B005, ALPHAM 0.3492, DIFF_COEFF 4.113e%2B009, DIFF_COEFF_Q 2.355e%2B008, FNUB_SI 1.006e-005, KAPPA0_SI 1.006e-005, DKAPPA_DZ_SI 2.804e-008, FNU0_SI 0.00572, AM0_SI 1.32e%2B005, AM1_SI 1.32e%2B005, AHI1_SI 880.3, AHI2_SI 880.3, ATHKDF1_SI 880.3, ATHKDF2_SI 880.3.

Brief Description Fuller Description Total Length of Run (in years) Averaging period (in years) Spinup period (in years) CO2 (in ppmv) CH4 (in ppbv) N2O (in ppbv) CFC11 (in pptv) CFC12 (in pptv) Computer used for simulation Compiler used for simulation Date of first entry in datebase Date of most recent modification to entry in database
FAMOUS_ensemble2_39 part of the tuning of FAMOUS. Simulation number 39 of ensemble2. The control run is tcrtb. 800 30 770 290 792 285 0 0 bigblue Intel_v10.1 2010_03_18_17_58 2010_05_27_13_12
You can access the means from this run, by going here
You can access the ocean integrals from this run, by going here

This page shows a small subset of images from this simulation. They have already been produced and there are no optional choices. If you want to do a more detailed examination of the model results, you can go to the main page and select one of the Parts. This will give you full access the system

Summary of Results for Experiment tcweM

Variable

 DJF JJA ANN Monthly Variable
Temperature at 2m Spinup: Surface Air Temperature

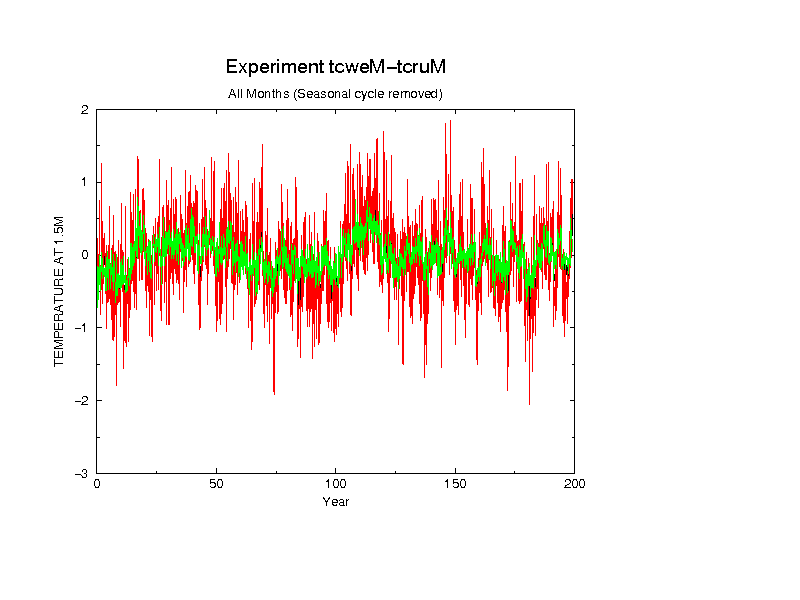

Precipitation Spinup: Surface Air Temperature - seasonal mean removed
Evaporation Spinup: Deepest layer Soil Moisture
Precipitation-Evaporation Spinup: Deepest layer Soil Moisture - seasonal mean removed
Fractional plant moisture stress BIOME4
Mean sea level pressure BIOME4 with CO2 changes
Surface winds Warm Month Mean
Total Cloud Cover Cold Month Mean
Planetary Albedo
Surface Albedo
Seaice
Streamfunction at 250hPa
Perturbation Streamfunction at 250 hPa

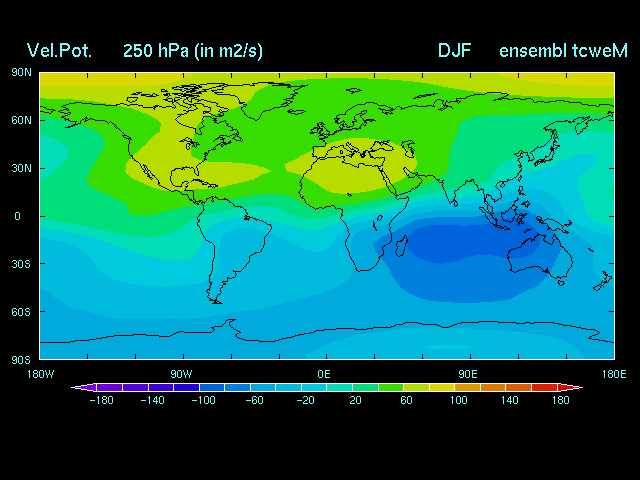

Velocity Potential at 250hPa
Divergence at 250hPa

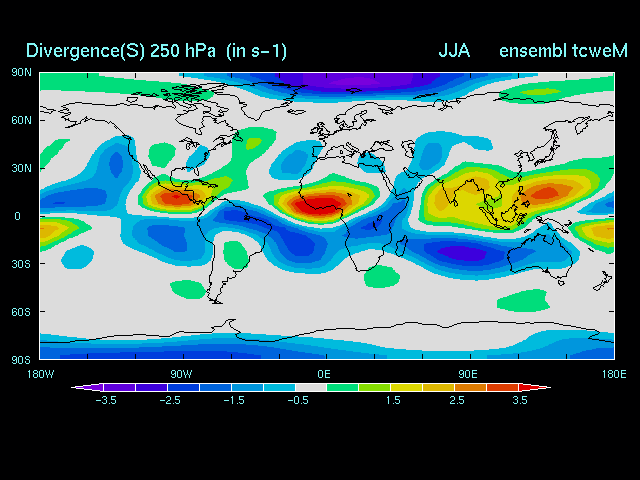

Divergence at 250hPa (smoothed)

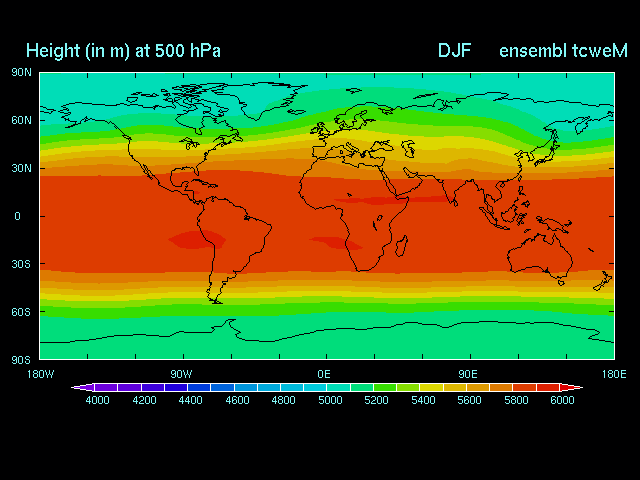

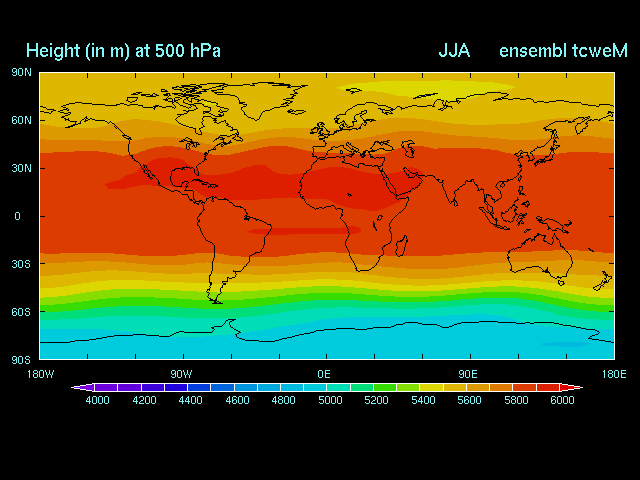

Height at 500hPa
Perturbation Height at 500hPa
Meridional stream function

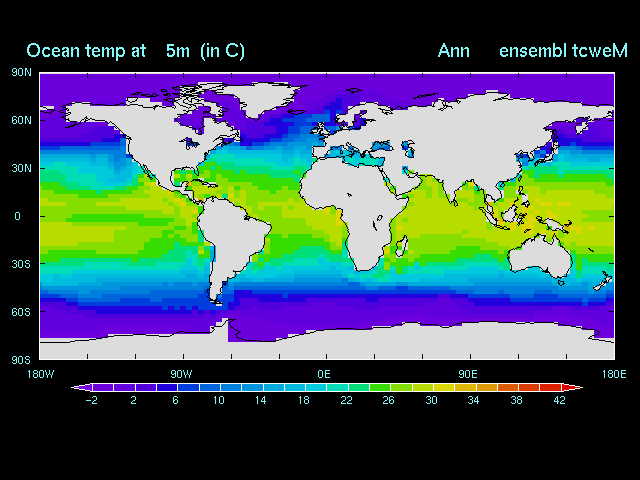

Ocean temperature at 5m Annual Mean Ocean temperature at 2116m
Ocean salinity at 5m Annual Mean Ocean salinity at 2116m
Ocean Currents at 5m Annual Mean Ocean currents at 2116m
Ocean Vertical Velocity at 10m Annual Mean Ocean Vertical Velocity at 2424m
Ocean Mixed Layer Depth Annual Mean Ocean Mass Streamfunction

Summary of Results: Anomalies for Experiments tcweM-tcruM

Variable

 DJF JJA ANN Monthly Variable
Temperature at 2m Spinup: Surface Air Temperature
Precipitation Spinup: Surface Air Temperature - seasonal mean removed
Evaporation Spinup: Deepest layer Soil Moisture
Precipitation-Evaporation Spinup: Deepest layer Soil Moisture - seasonal mean removed
Fractional plant moisture stress BIOME4
Mean sea level pressure BIOME4 with CO2 changes
Surface winds Warm Month Mean
Total Cloud Cover Cold Month Mean
Planetary Albedo
Surface Albedo

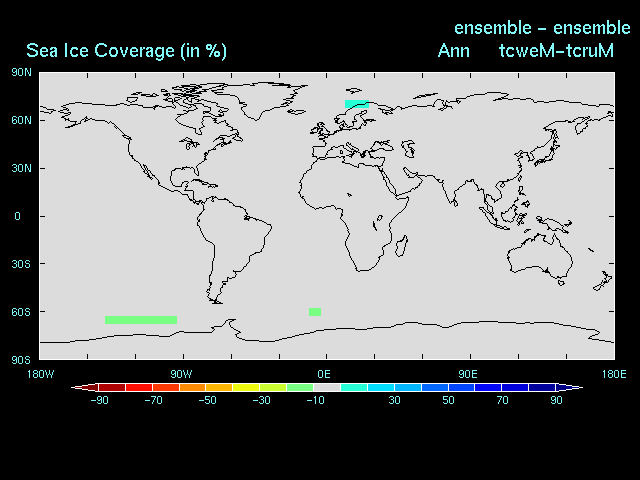

Seaice
Streamfunction at 250hPa
Perturbation Streamfunction at 250 hPa
Velocity Potential at 250hPa
Divergence at 250hPa
Divergence at 250hPa (smoothed)
Height at 500hPa
Perturbation Height at 500hPa
Meridional stream function
Ocean temperature at 5m Annual Mean Ocean temperature at 2116m
Ocean salinity at 5m Annual Mean Ocean salinity at 2116m
Ocean Currents at 5m Annual Mean Ocean currents at 2116m

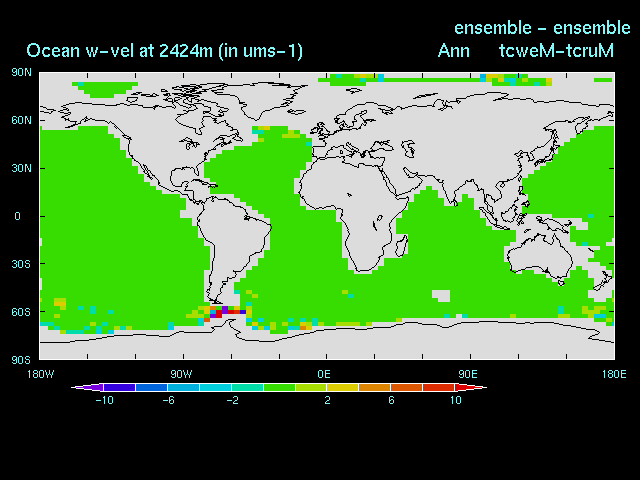

Ocean Vertical Velocity at 10m Annual Mean Ocean Vertical Velocity at 2424m
Ocean Mixed Layer Depth Annual Mean Ocean Mass Streamfunction
