Earth Systems Modelling Results

Bristol Research Initiative for the Dynamic Global Environment

with the

University of Reading, Open University, and the British Antarctic Survey.
Model Simulations

Experiment: TCNAV

parmeter values are, , RHCRIT 0.8381, VF1 1.113, CT 0.00023, CW_LAND 0.001241, CW_SEA 0.0003083, Z0FSEA 0.003608, KAY_GWAVE 1.466e+004, KAY_LEE_GWAVE 2.198e+005, ALPHAM 0.4241, DIFF_COEFF 3.947e+009, DIFF_COEFF_Q 2.259e+008, FNUB_SI 9.147e-006, KAPPA0_SI 9.147e-006, DKAPPA_DZ_SI 2.537e-008, FNU0_SI 0.005402, AM0_SI 1.474e+005, AM1_SI 1.474e+005, AHI1_SI 982.7, AHI2_SI 982.7, ATHKDF1_SI 982.7, ATHKDF2_SI 982.7.

Brief Description Fuller Description Total Length of Run (in years) Averaging period (in years) Spinup period (in years) CO2 (in ppmv) CH4 (in ppbv) N2O (in ppbv) CFC11 (in pptv) CFC12 (in pptv) Computer used for simulation Compiler used for simulation Date of first entry in datebase Date of most recent modification to entry in database
FAMOUS_LGM_ensemble_2_48 part of the tuning of FAMOUS. Simulation number 48 of LGM_ensemble_2. The control run is tcrpb. Run on bigblue. 250 30 170 185 350 250 0 0 bigblue Intel_v10.1 2509_03_21_17_50 2509_03_21_17_53
You can access the means from this run, by going here
You can access the ocean integrals from this run, by going here

This page shows a small subset of images from this simulation. They have already been produced and there are no optional choices. If you want to do a more detailed examination of the model results, you can go to the main page and select one of the Parts. This will give you full access the system

Summary of Results for Experiment tcnaV

Variable

 DJF JJA ANN Monthly Variable

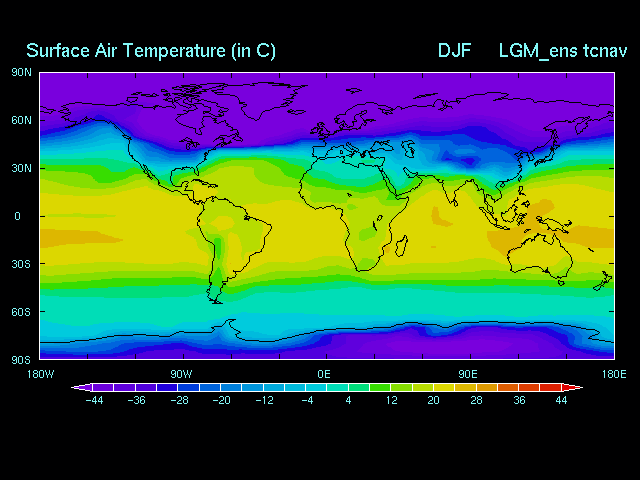

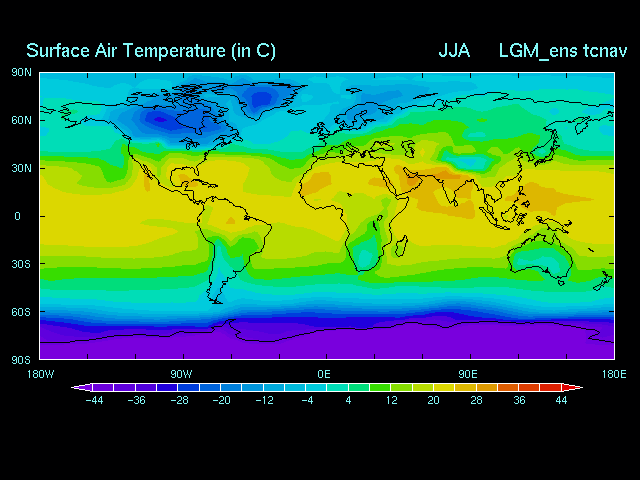

Temperature at 2m Spinup: Surface Air Temperature

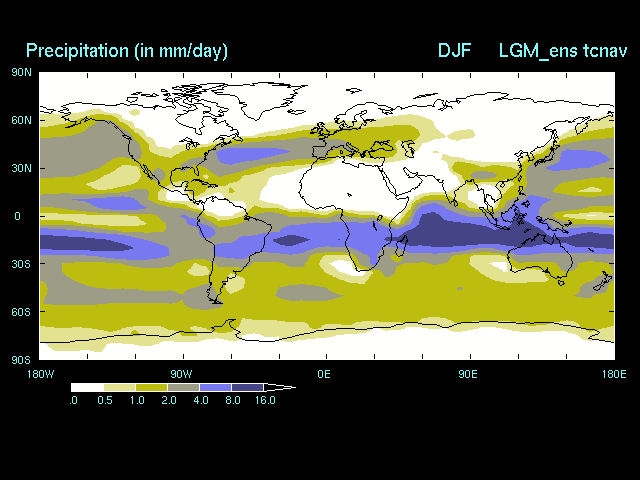

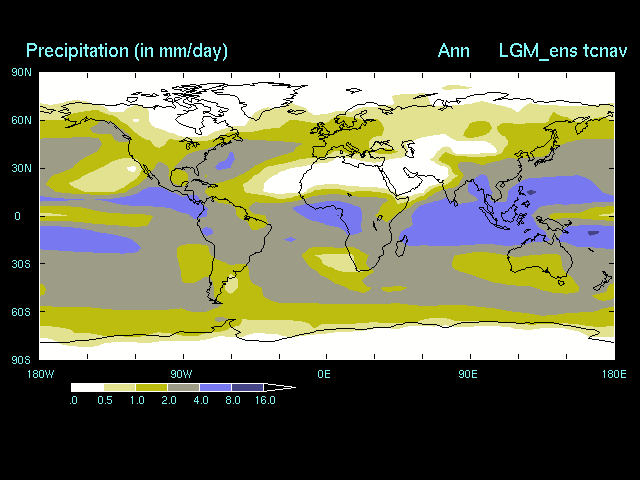

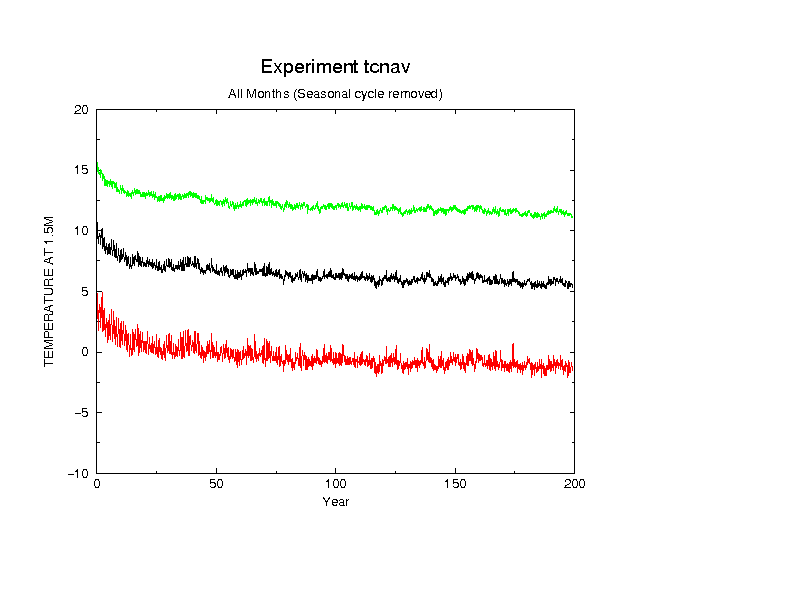

Precipitation Spinup: Surface Air Temperature - seasonal mean removed

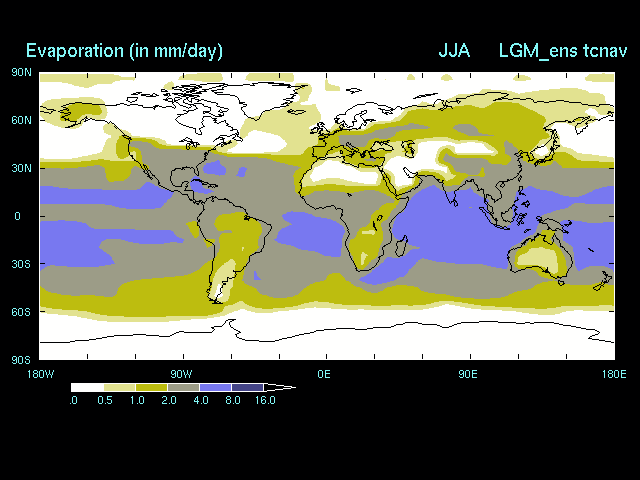

Evaporation Spinup: Deepest layer Soil Moisture

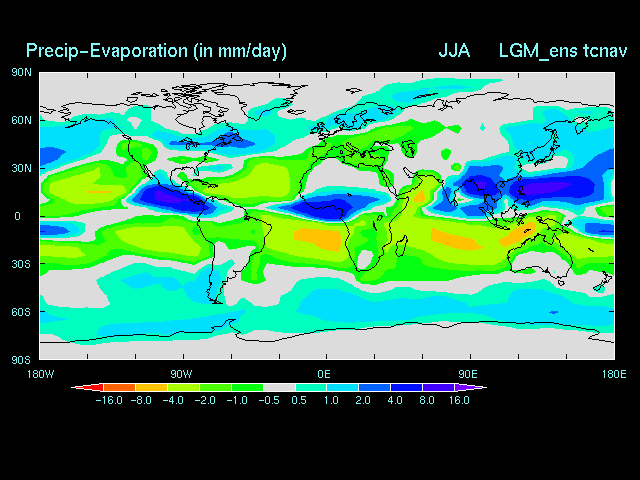

Precipitation-Evaporation Spinup: Deepest layer Soil Moisture - seasonal mean removed

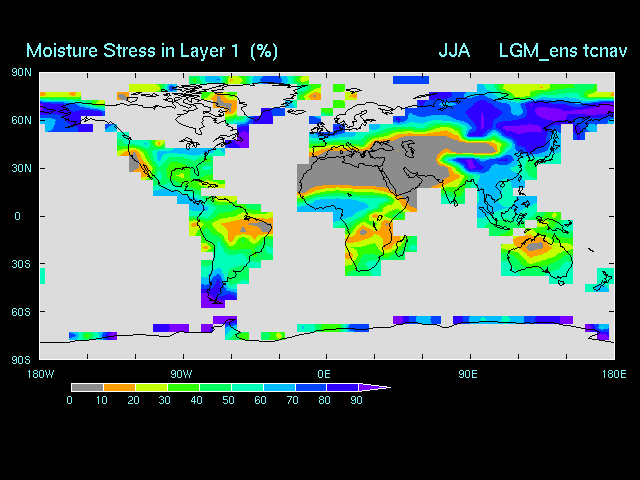

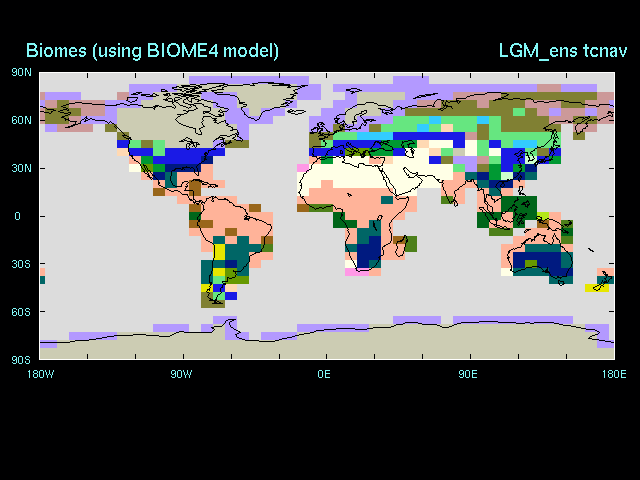

Fractional plant moisture stress BIOME4
Mean sea level pressure BIOME4 with CO2 changes

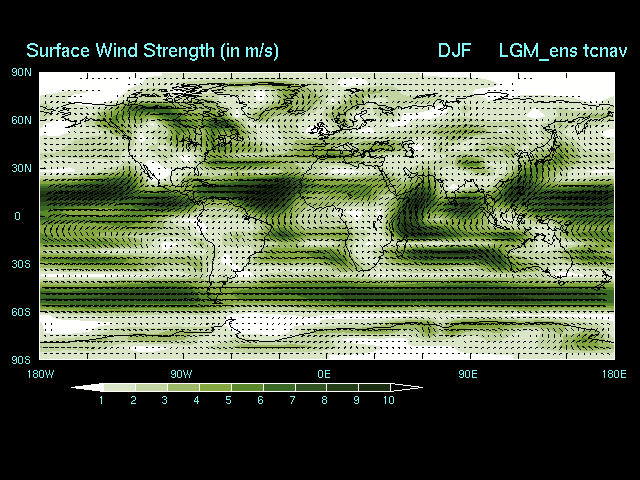

Surface winds Warm Month Mean

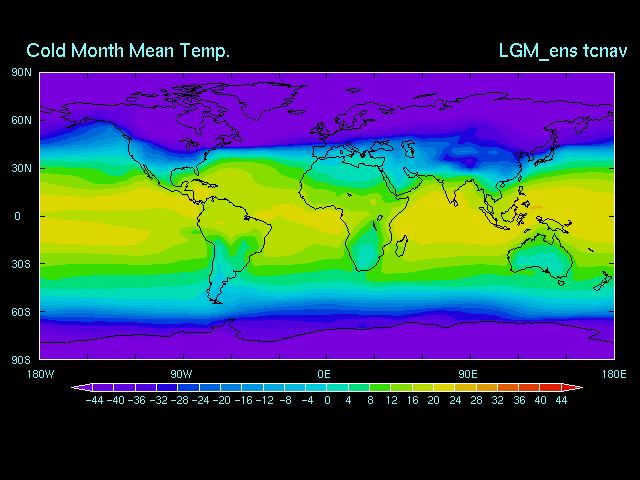

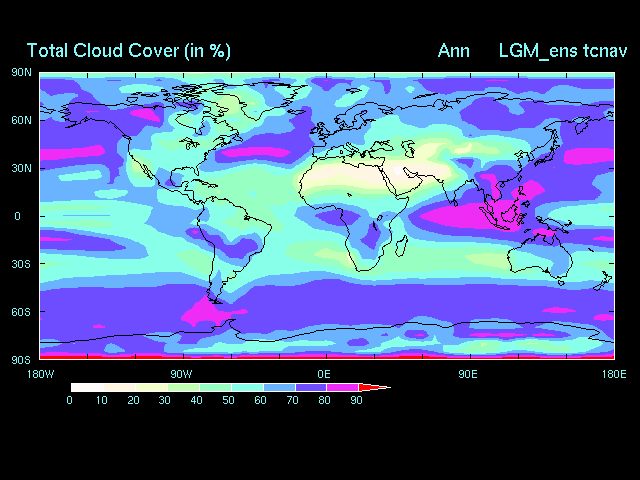

Total Cloud Cover Cold Month Mean
Planetary Albedo

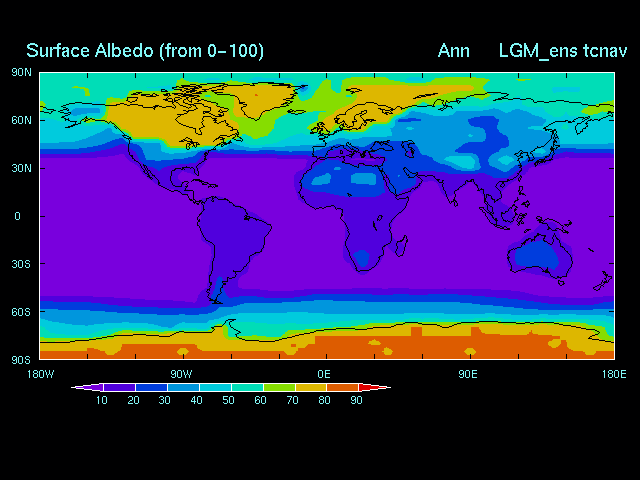

Surface Albedo

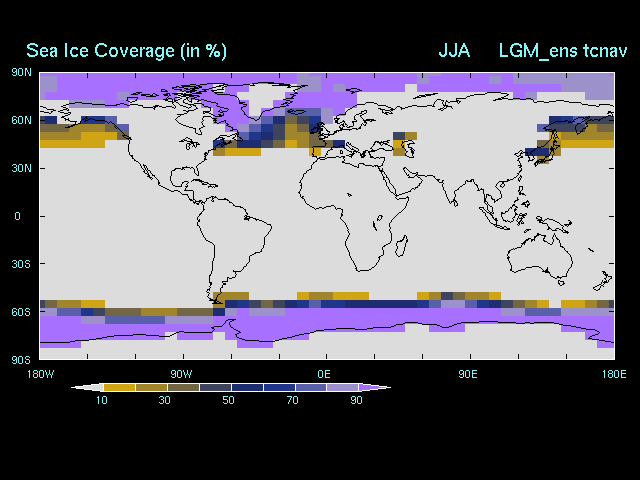

Seaice

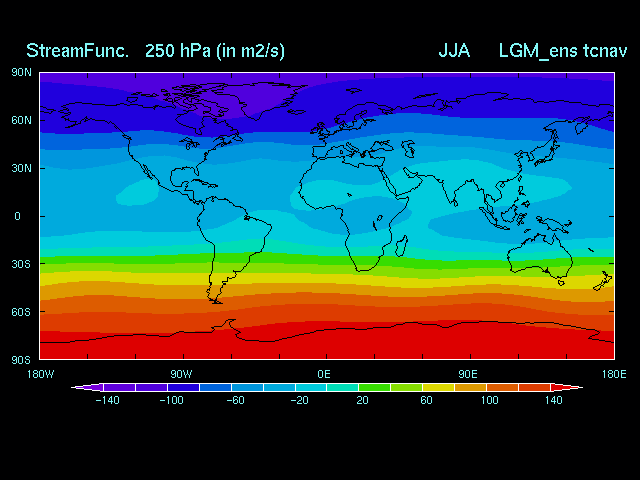

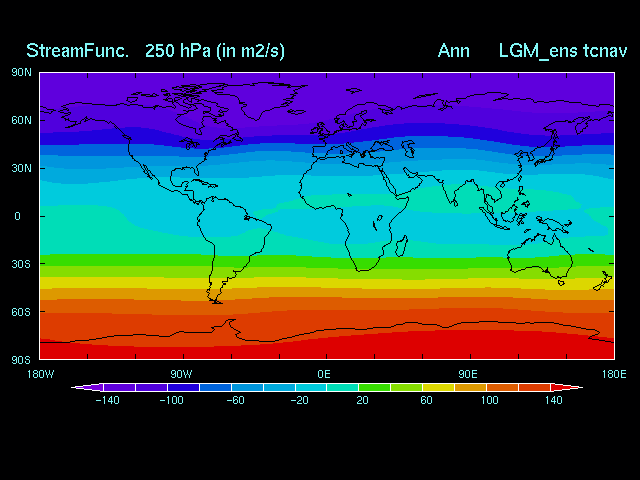

Streamfunction at 250hPa

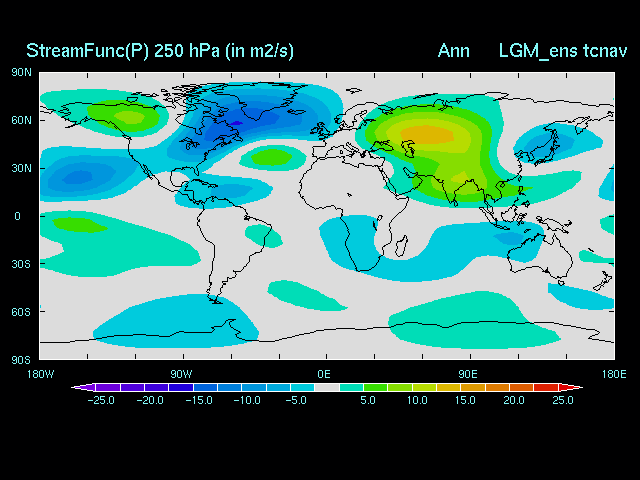

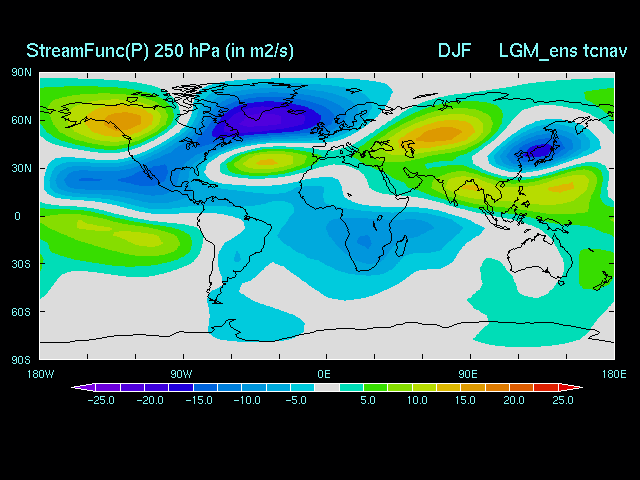

Perturbation Streamfunction at 250 hPa

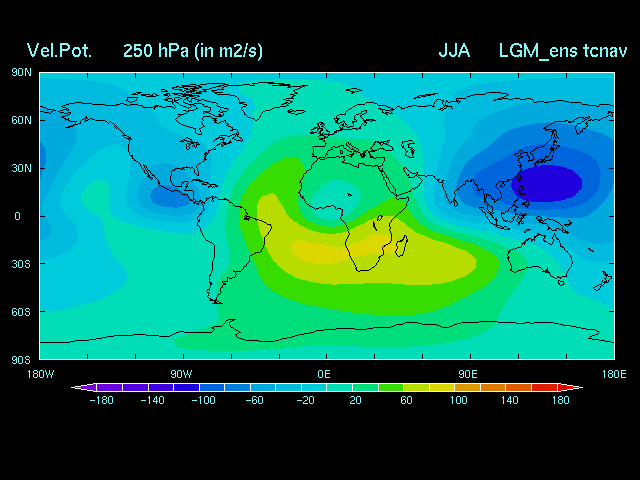

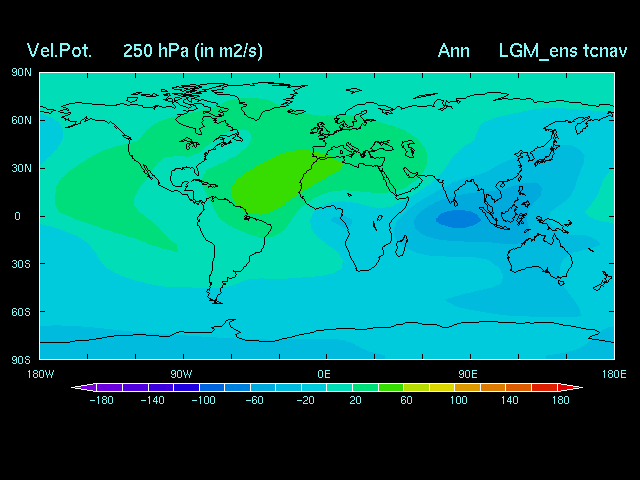

Velocity Potential at 250hPa

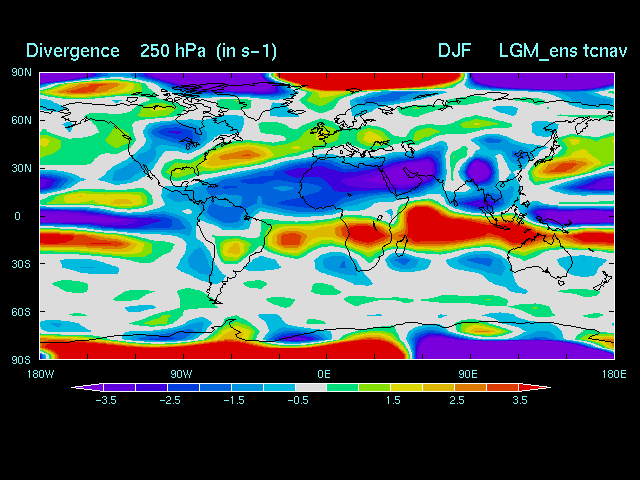

Divergence at 250hPa

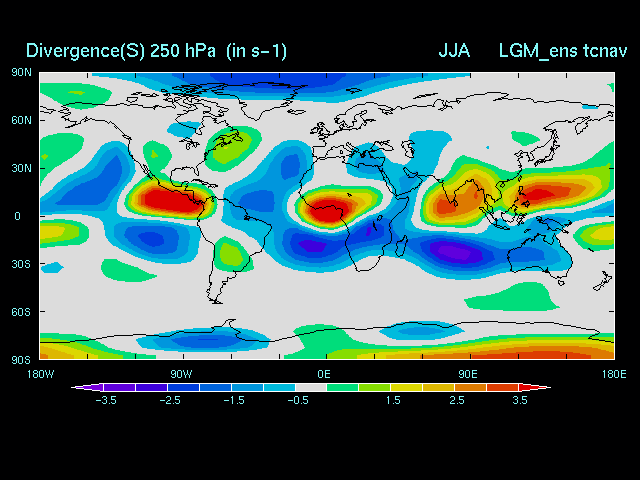

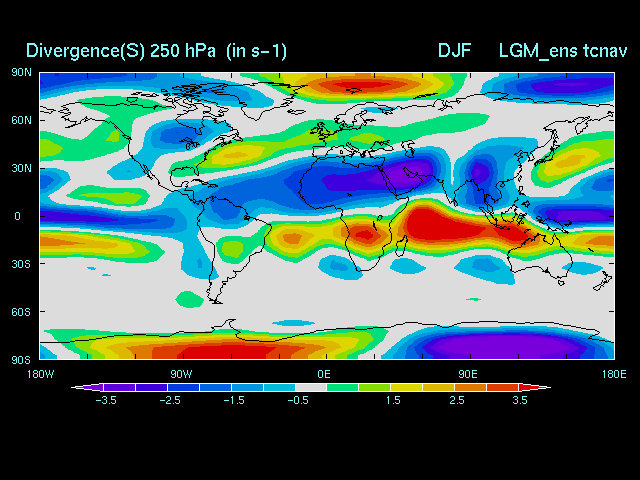

Divergence at 250hPa (smoothed)
Height at 500hPa
Perturbation Height at 500hPa
Meridional stream function

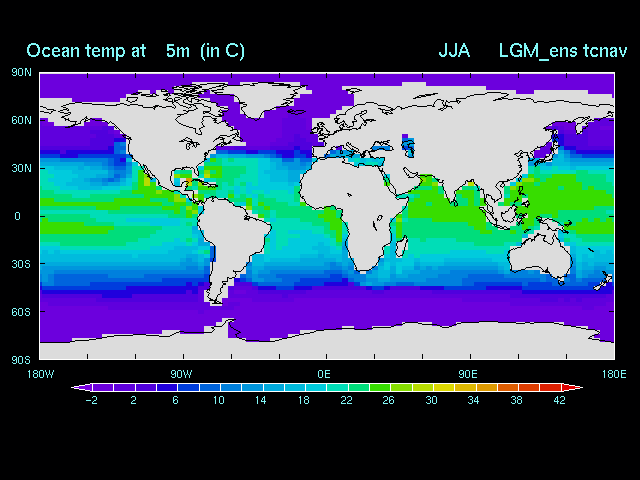

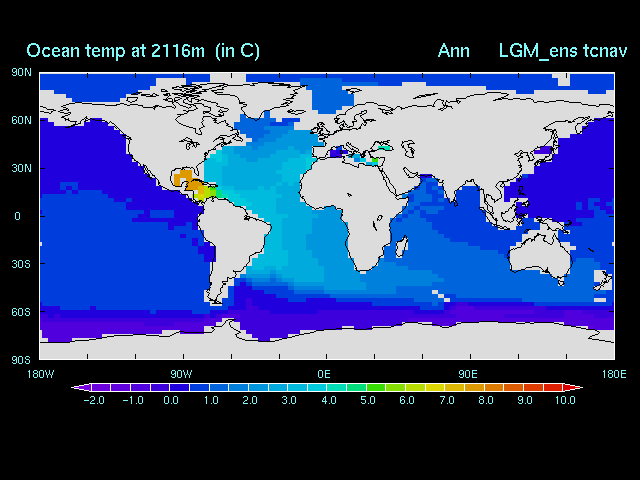

Ocean temperature at 5m Annual Mean Ocean temperature at 2116m

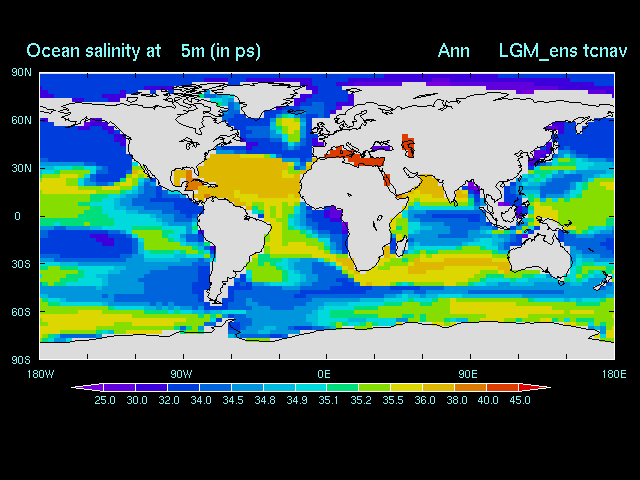

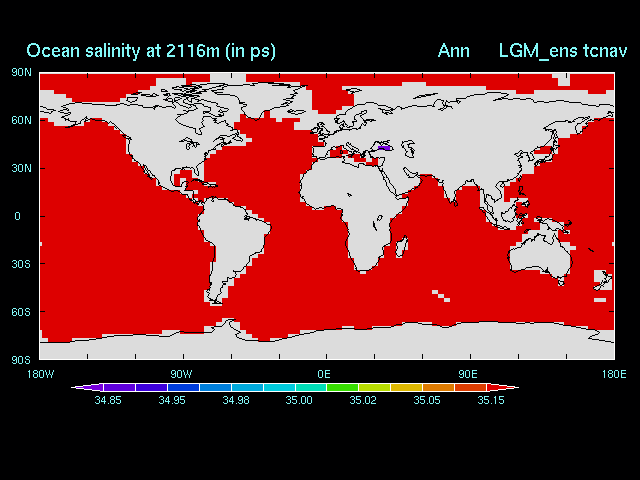

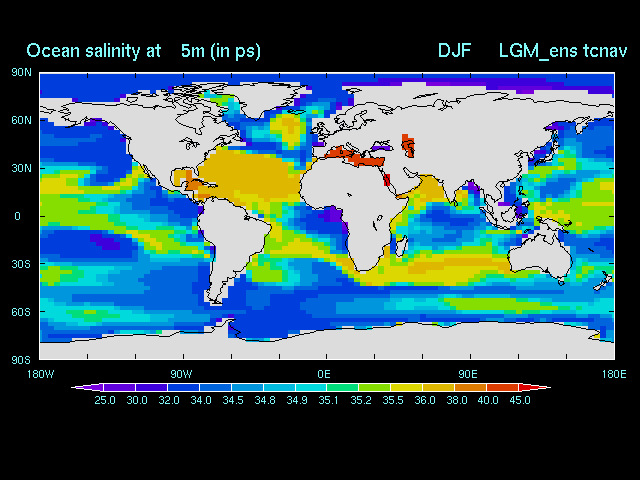

Ocean salinity at 5m Annual Mean Ocean salinity at 2116m

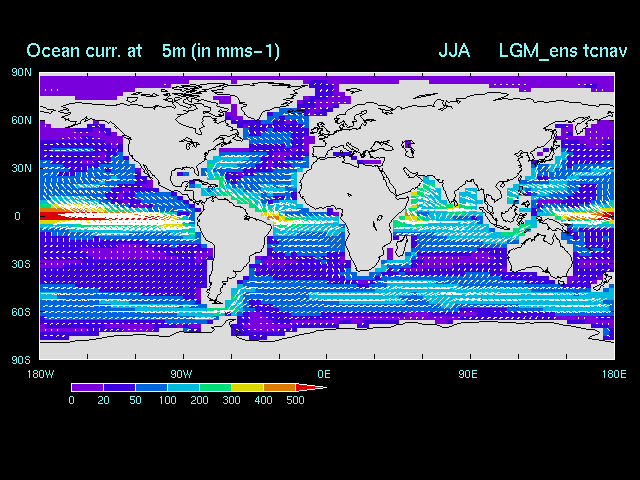

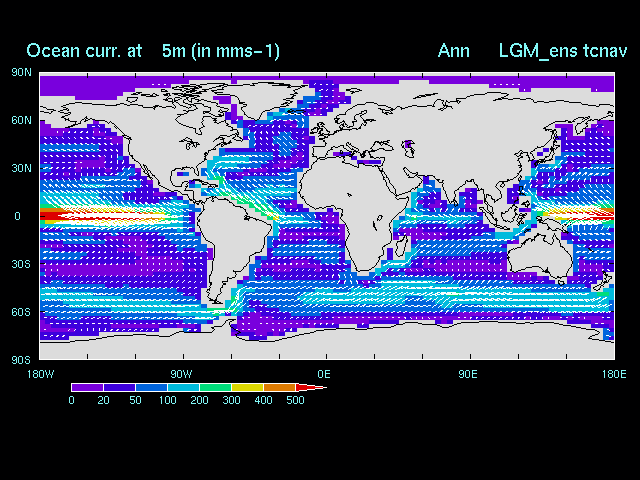

Ocean Currents at 5m Annual Mean Ocean currents at 2116m

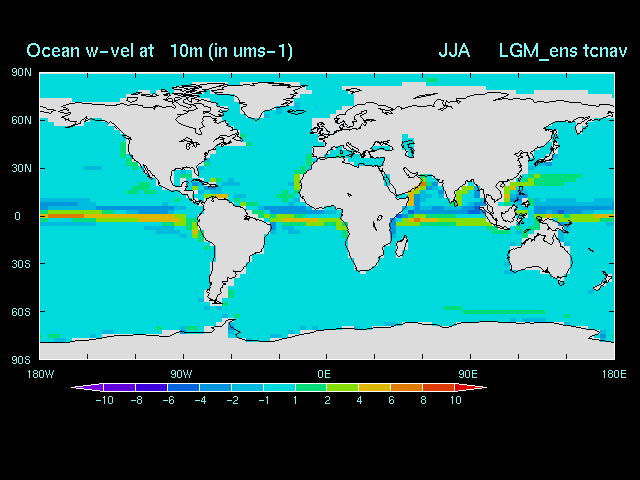

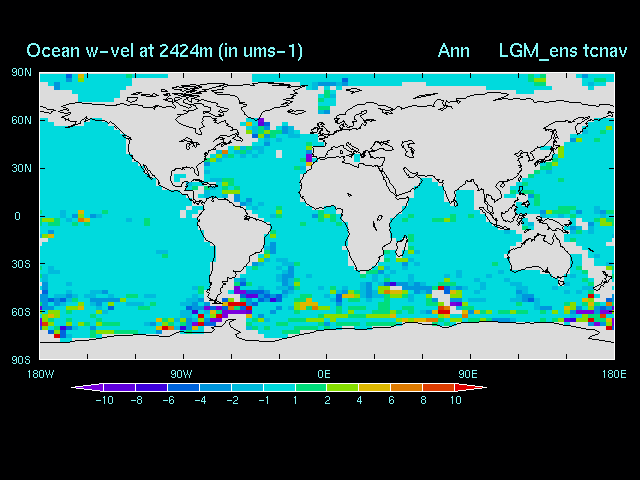

Ocean Vertical Velocity at 10m Annual Mean Ocean Vertical Velocity at 2424m
Ocean Mixed Layer Depth Annual Mean Ocean Mass Streamfunction

Summary of Results: Anomalies for Experiments tcnaV-tcrpb

Variable

 DJF JJA ANN Monthly Variable

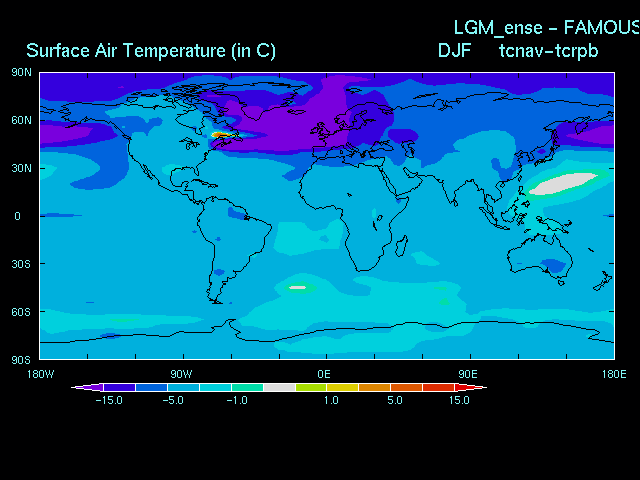

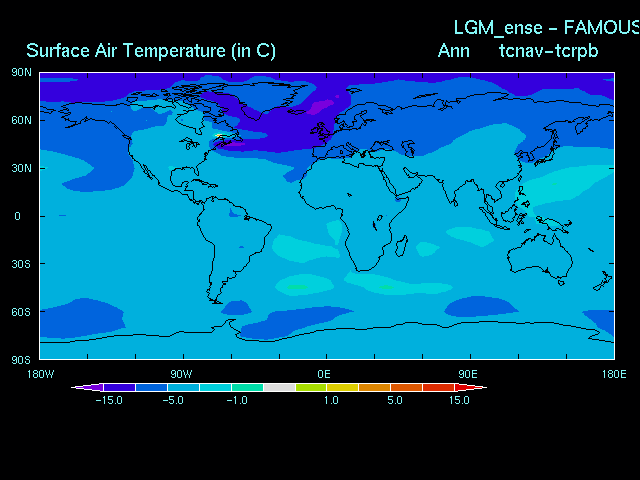

Temperature at 2m Spinup: Surface Air Temperature

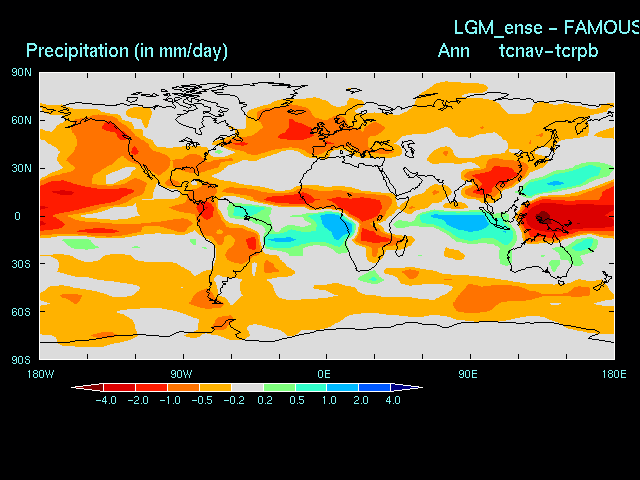

Precipitation Spinup: Surface Air Temperature - seasonal mean removed

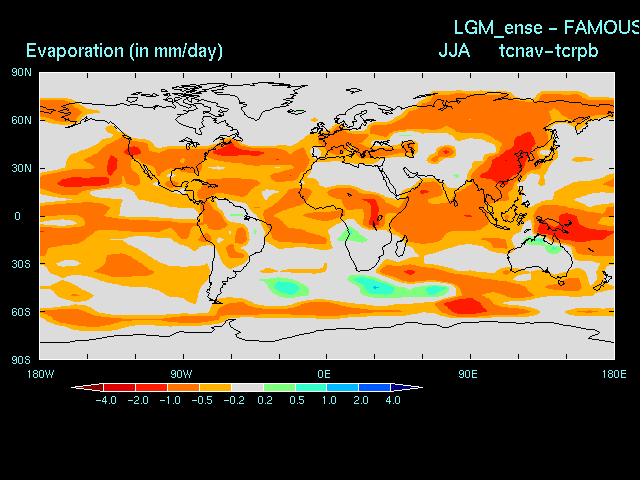

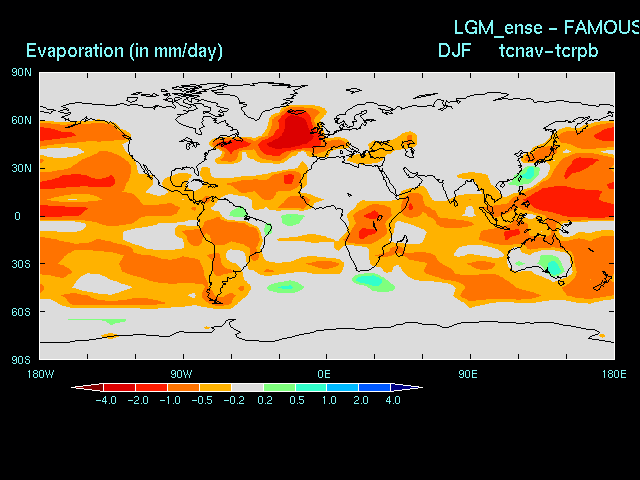

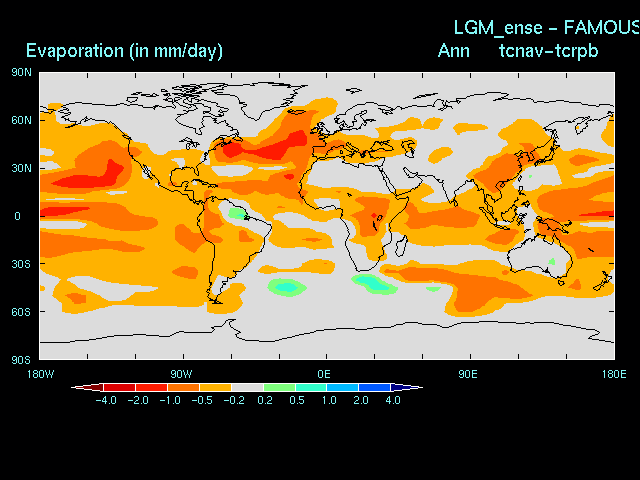

Evaporation Spinup: Deepest layer Soil Moisture

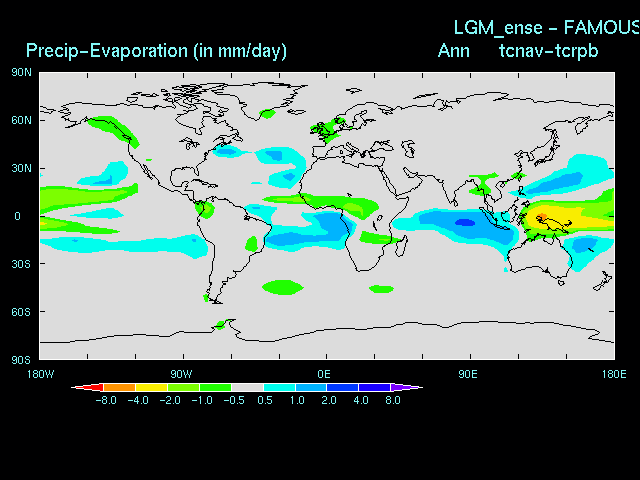

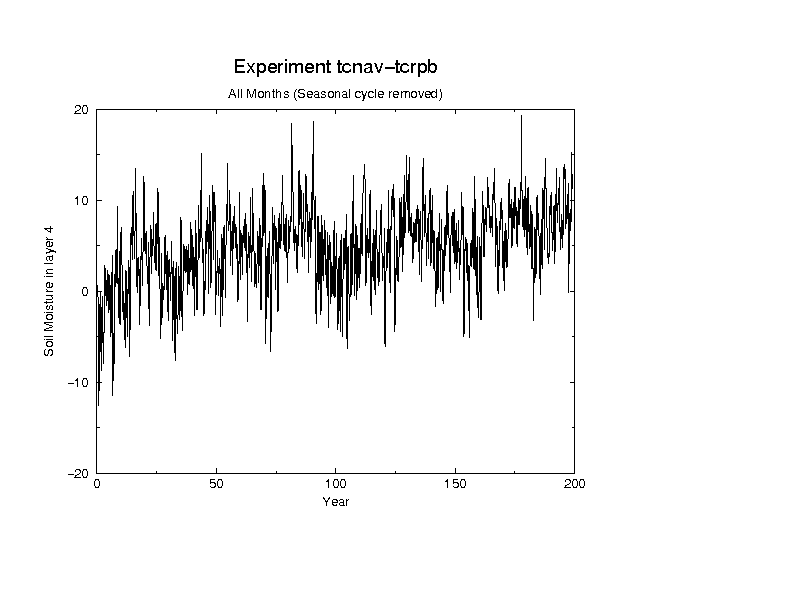

Precipitation-Evaporation Spinup: Deepest layer Soil Moisture - seasonal mean removed

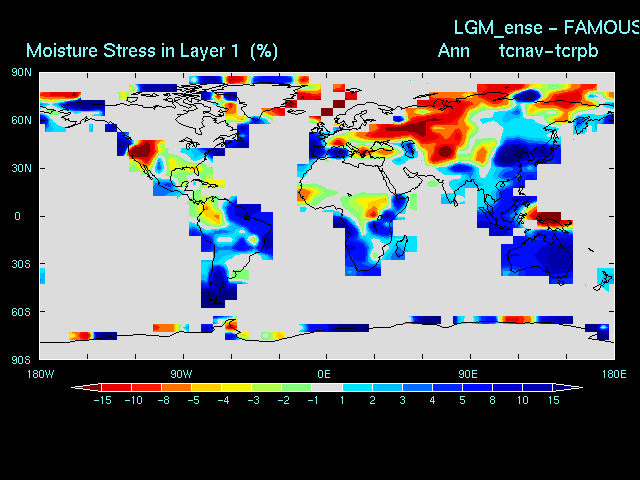

Fractional plant moisture stress BIOME4

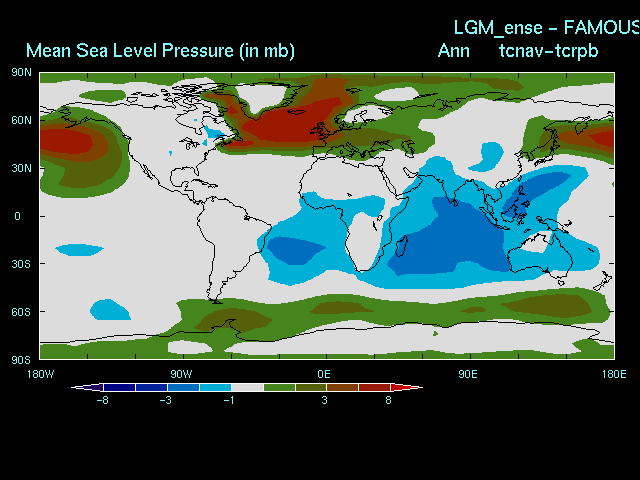

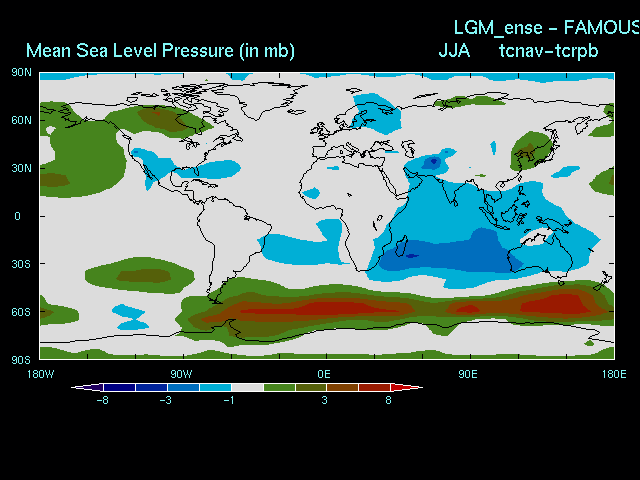

Mean sea level pressure BIOME4 with CO2 changes

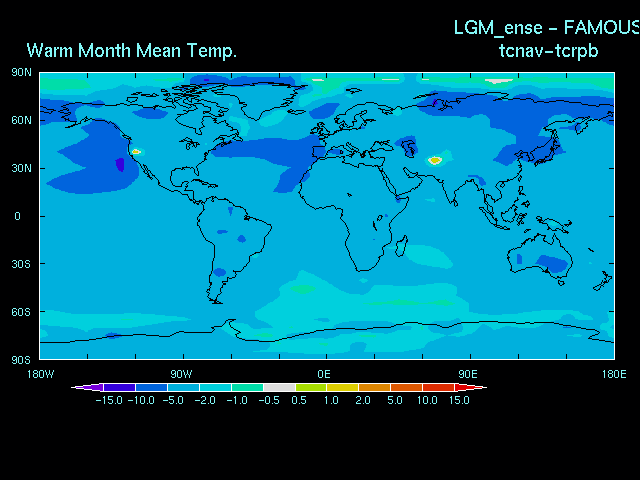

Surface winds Warm Month Mean

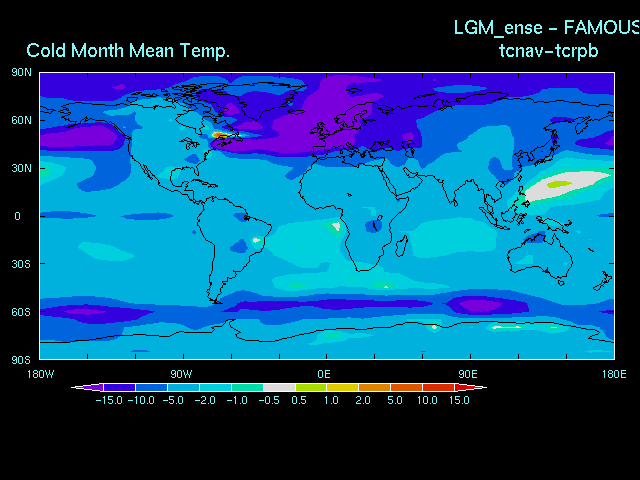

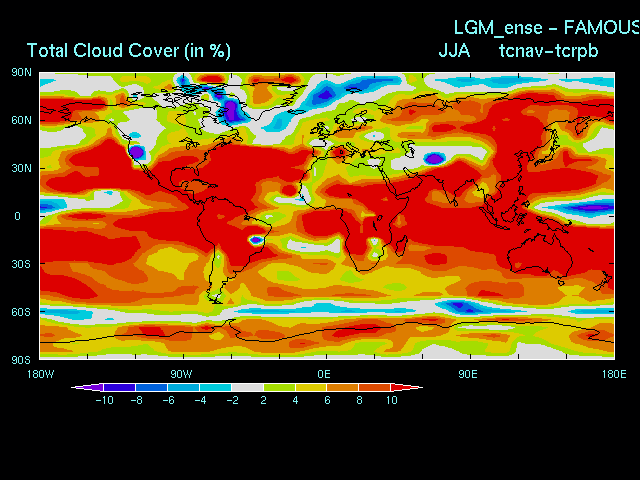

Total Cloud Cover Cold Month Mean
Planetary Albedo

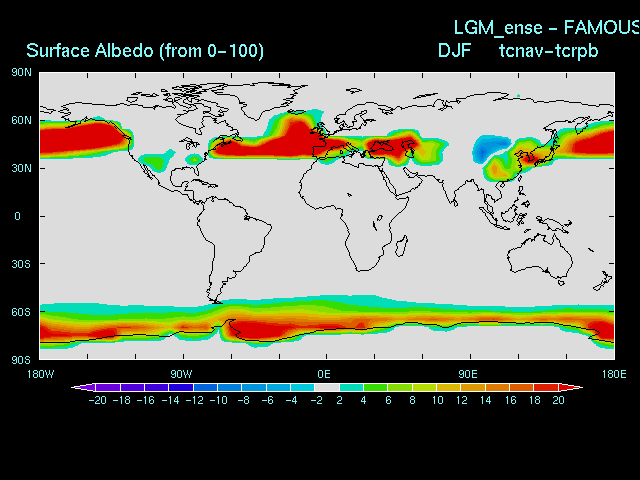

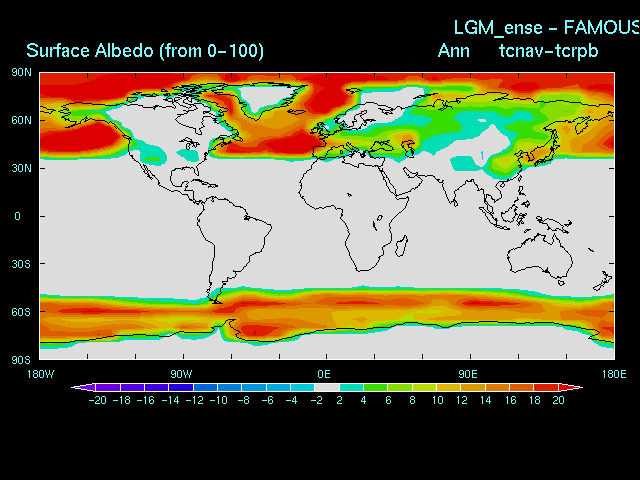

Surface Albedo

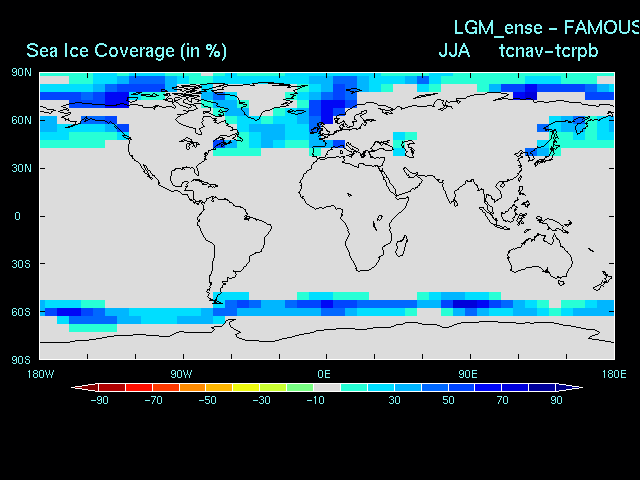

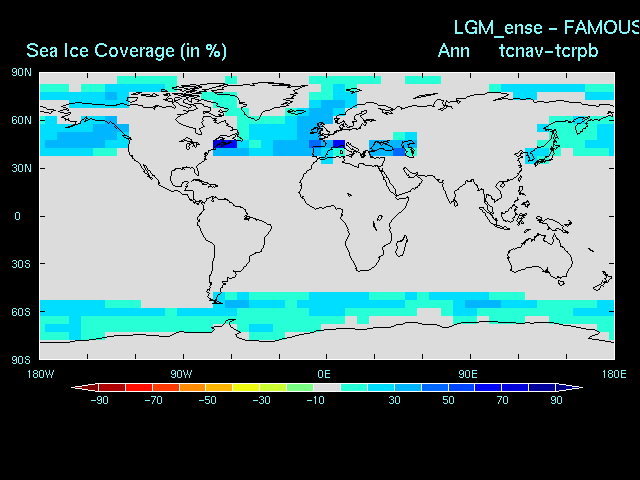

Seaice

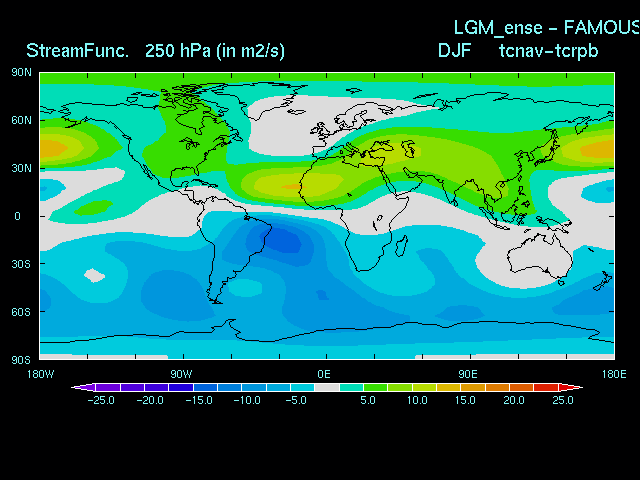

Streamfunction at 250hPa

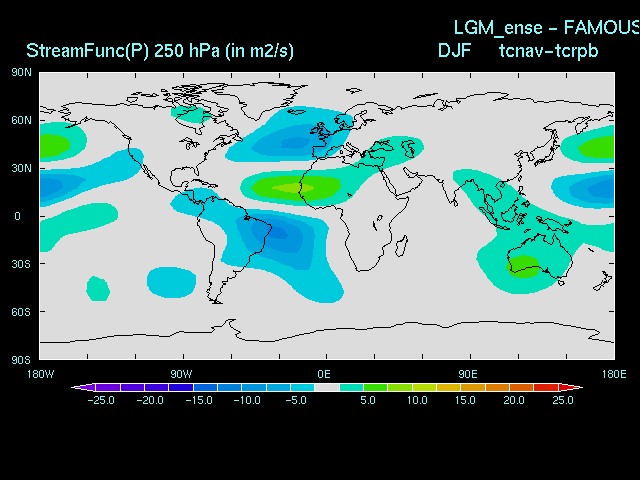

Perturbation Streamfunction at 250 hPa

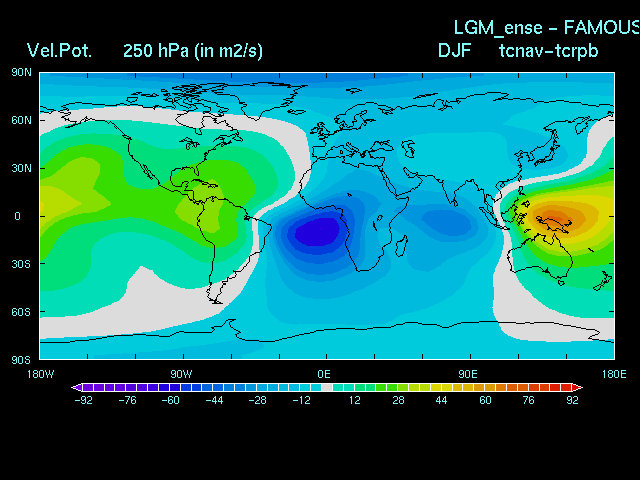

Velocity Potential at 250hPa

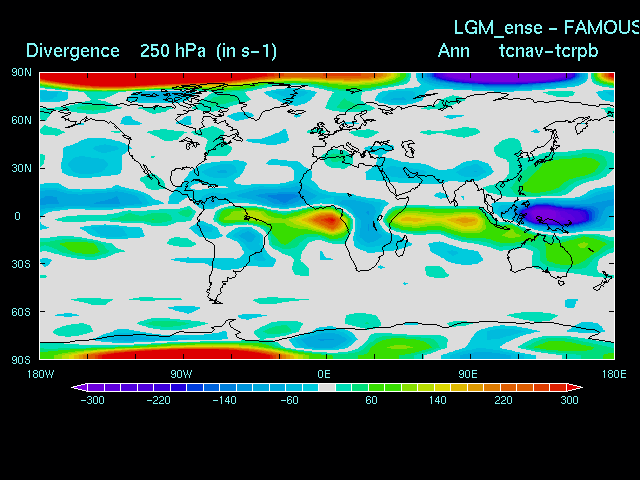

Divergence at 250hPa
Divergence at 250hPa (smoothed)

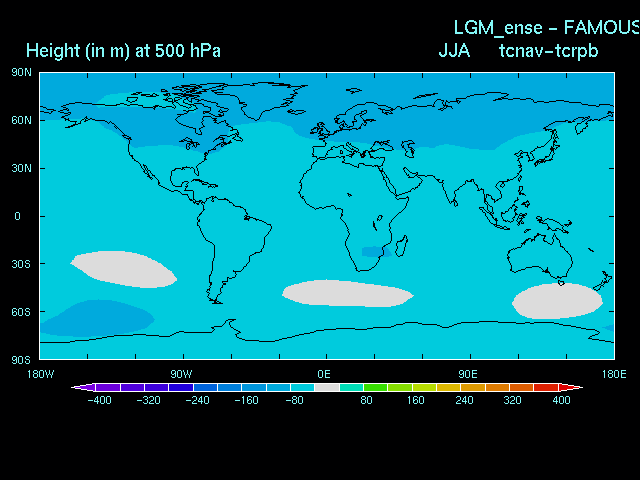

Height at 500hPa

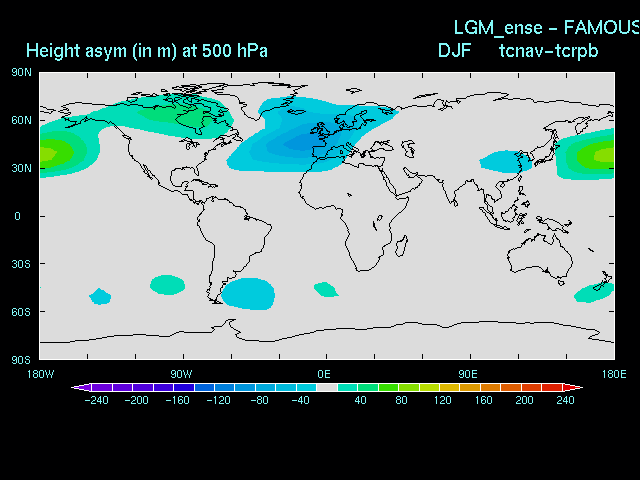

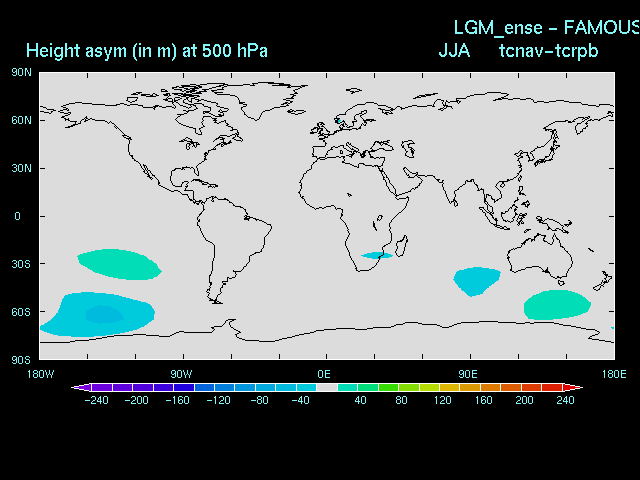

Perturbation Height at 500hPa

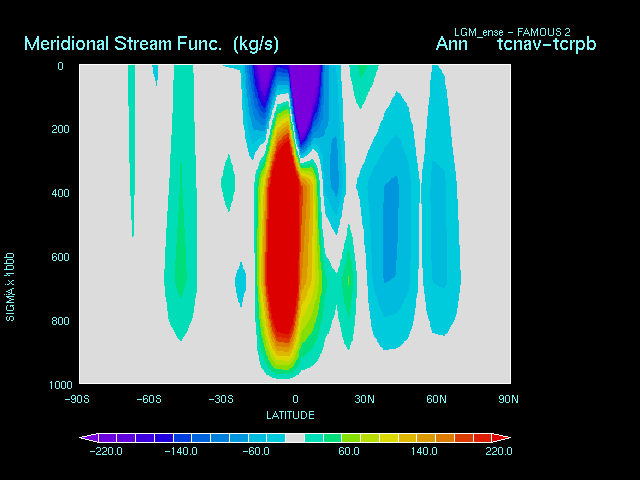

Meridional stream function

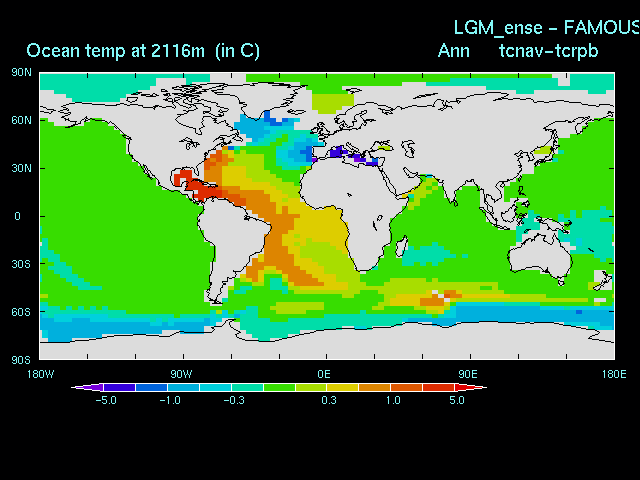

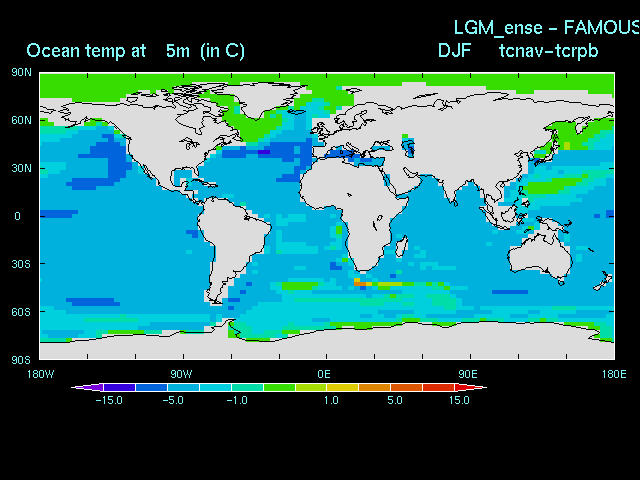

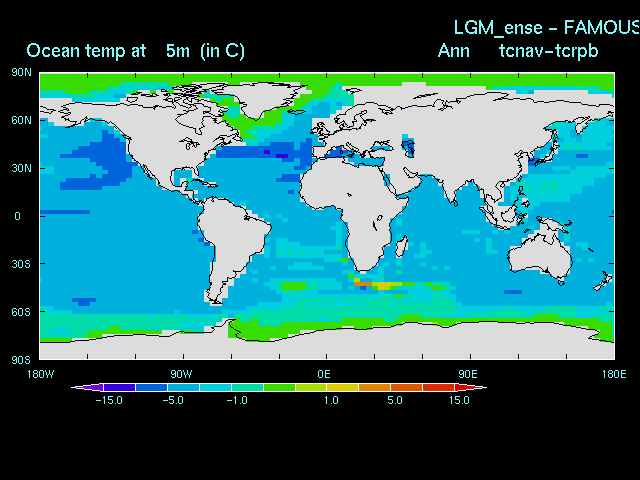

Ocean temperature at 5m Annual Mean Ocean temperature at 2116m
Ocean salinity at 5m Annual Mean Ocean salinity at 2116m

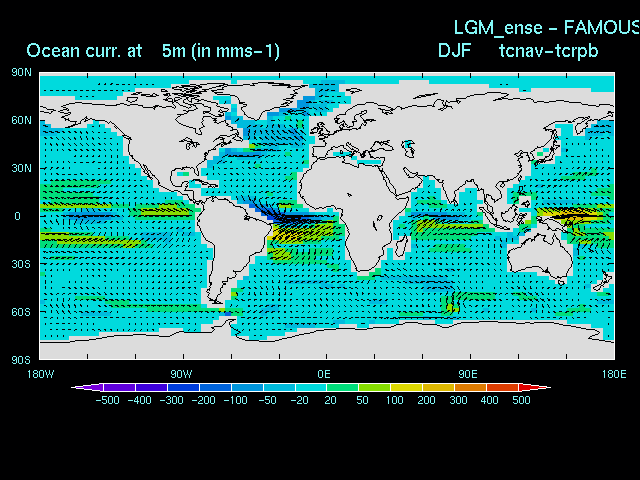

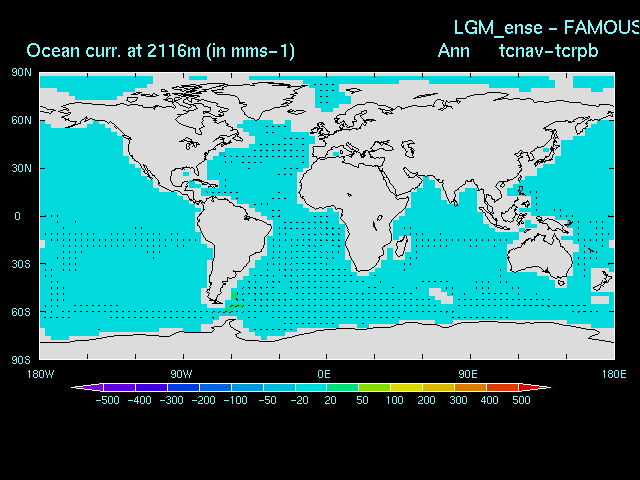

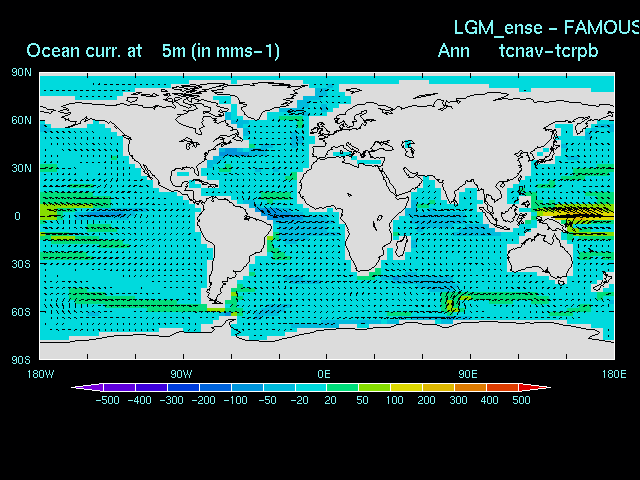

Ocean Currents at 5m Annual Mean Ocean currents at 2116m
Ocean Vertical Velocity at 10m Annual Mean Ocean Vertical Velocity at 2424m
Ocean Mixed Layer Depth Annual Mean Ocean Mass Streamfunction
